SDO HMI 2011-01-05 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.80 | 410.99 | 41.76 | 252.91 | 31.38 | 188.21 | -10.64 | 15.43 | 0.5944 | -982.3 | -332.6 | |
|
previous
or next observation for the same group /

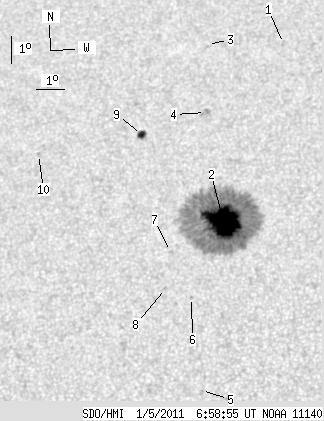

back to the solar disc SDO HMI 2011-01-05 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.25 | 37.92 | 189.69 | -9.16 | 10.76 | 0.6749 | 666.0 | 532.7 | |
| 63.13 | 392.65 | 38.73 | 241.13 | 31.25 | 188.31 | -10.54 | 15.37 | 0.5923 | -1318.2 | -358.7 | |
| 0.00 | 0.34 | 0.00 | 0.23 | 37.91 | 186.80 | -12.05 | 14.00 | 0.6828 | 342.0 | 413.0 | |
| 0.00 | 4.76 | 0.00 | 3.09 | 35.28 | 187.14 | -11.71 | 14.84 | 0.6491 | 707.0 | 613.8 | |
| 0.00 | 0.25 | 0.00 | 0.15 | 25.38 | 188.15 | -10.69 | 19.19 | 0.5122 | -585.0 | -476.3 | |
| 0.00 | 1.10 | 0.00 | 0.66 | 28.57 | 187.50 | -11.35 | 18.07 | 0.5594 | -475.0 | -373.3 | |
| 0.00 | 1.78 | 0.00 | 1.09 | 30.20 | 186.58 | -12.27 | 18.36 | 0.5854 | -651.0 | -454.8 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 28.90 | 186.57 | -12.28 | 19.21 | 0.5681 | -512.0 | -497.2 | |
| 4.67 | 6.03 | 3.03 | 3.91 | 34.49 | 184.90 | -13.94 | 17.93 | 0.6475 | 784.4 | 573.6 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 33.81 | 181.22 | -17.63 | 22.63 | 0.6563 | 306.0 | 304.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
