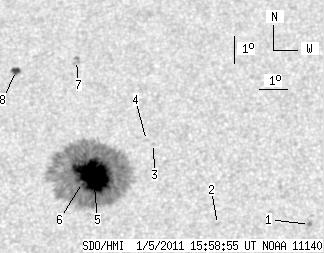

SDO HMI 2011-01-05 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.60 | 411.02 | 41.12 | 249.60 | 31.33 | 188.06 | -5.86 | 8.67 | 0.5799 | -1011.6 | -337.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-05 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.20 | 29.48 | 195.48 | 1.56 | 357.50 | 0.5471 | -938.0 | -738.8 | |
| 0.00 | 1.61 | 0.00 | 0.95 | 29.48 | 192.37 | -1.55 | 2.48 | 0.5471 | -669.0 | -467.2 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 32.39 | 190.08 | -3.84 | 5.51 | 0.5911 | 673.0 | 441.9 | |
| 0.00 | 1.44 | 0.00 | 0.89 | 32.50 | 189.83 | -4.09 | 5.84 | 0.5930 | 521.0 | 482.4 | |
| 62.42 | 395.14 | 37.83 | 239.67 | 31.24 | 188.05 | -5.87 | 8.72 | 0.5786 | -1285.3 | -357.8 | |
| 0.85 | -5.00 | 0.51 | -5.00 | 30.99 | 187.69 | -6.23 | 9.34 | 0.5759 | -1123.0 | 999999 | |
| 0.00 | 4.42 | 0.00 | 2.83 | 35.50 | 187.14 | -6.78 | 8.69 | 0.6386 | 634.0 | 676.1 | |
| 4.33 | 5.18 | 2.78 | 3.33 | 35.14 | 184.98 | -8.94 | 11.51 | 0.6390 | 833.2 | 616.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
