SDO HMI 2011-01-05 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.97 | 410.89 | 42.41 | 249.01 | 31.29 | 188.04 | -4.77 | 7.08 | 0.5774 | -1097.2 | -336.7 | |
|
previous
or next observation for the same group /

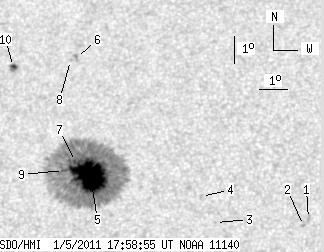

back to the solar disc SDO HMI 2011-01-05 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.14 | 0.00 | 1.86 | 29.68 | 195.50 | 2.69 | 355.74 | 0.5511 | -677.0 | -586.1 | |
| 0.00 | 0.93 | 0.00 | 0.55 | 29.44 | 195.33 | 2.51 | 355.98 | 0.5473 | -839.0 | -671.7 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 29.54 | 192.35 | -0.47 | 0.75 | 0.5476 | -666.0 | -564.8 | |
| 0.00 | 1.70 | 0.00 | 1.01 | 30.46 | 191.86 | -0.95 | 1.47 | 0.5612 | -600.0 | -419.4 | |
| 64.79 | 396.71 | 39.19 | 240.25 | 31.22 | 188.02 | -4.79 | 7.15 | 0.5763 | -1316.1 | -351.1 | |
| 0.00 | 2.55 | 0.00 | 1.63 | 35.59 | 187.27 | -5.55 | 7.11 | 0.6377 | 797.0 | 675.4 | |
| 1.36 | -5.00 | 0.83 | -5.00 | 31.73 | 187.48 | -5.34 | 7.81 | 0.5845 | -536.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 35.48 | 187.06 | -5.76 | 7.40 | 0.6365 | 638.0 | 570.1 | |
| 1.95 | -5.00 | 1.19 | -5.00 | 31.41 | 187.08 | -5.74 | 8.48 | 0.5807 | -668.2 | 999999 | |
| 1.87 | 3.99 | 1.20 | 2.56 | 35.27 | 185.00 | -7.82 | 10.06 | 0.6379 | 874.6 | 747.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
