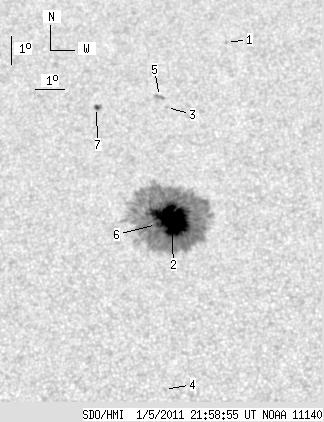

SDO HMI 2011-01-05 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.98 | 404.04 | 37.48 | 244.41 | 31.32 | 187.82 | -2.79 | 4.16 | 0.5752 | -1096.2 | -354.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-05 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.62 | 37.88 | 189.68 | -0.93 | 1.11 | 0.6639 | 648.0 | 541.4 | |
| 59.27 | 393.94 | 35.78 | 237.99 | 31.23 | 187.85 | -2.75 | 4.12 | 0.5739 | -1316.1 | -377.0 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 35.37 | 187.53 | -3.07 | 3.98 | 0.6318 | 648.0 | 563.8 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 25.32 | 187.77 | -2.83 | 5.29 | 0.4867 | -739.0 | -632.2 | |
| 0.00 | 3.99 | 0.00 | 2.56 | 35.79 | 187.26 | -3.34 | 4.27 | 0.6377 | 825.0 | 688.7 | |
| 0.93 | -2.00 | 0.56 | -2.00 | 31.05 | 187.34 | -3.27 | 4.91 | 0.5719 | -1111.4 | 999999 | |
| 1.78 | 3.31 | 1.14 | 2.12 | 35.38 | 185.00 | -5.61 | 7.23 | 0.6353 | 756.1 | 743.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
