SDO HMI 2011-01-05 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.38 | 401.45 | 36.51 | 242.76 | 31.31 | 187.80 | -2.25 | 3.37 | 0.5746 | -1127.7 | -363.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-05 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

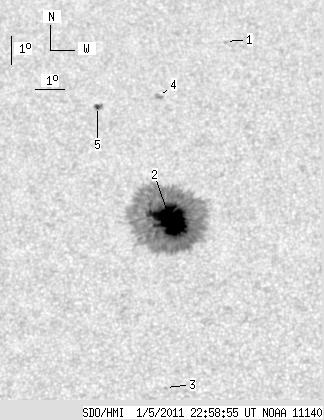

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.79 | 37.95 | 189.69 | -0.37 | 0.44 | 0.6649 | 523.0 | 519.4 | |
| 58.34 | 392.44 | 35.21 | 237.04 | 31.22 | 187.82 | -2.23 | 3.35 | 0.5734 | -1310.5 | -382.9 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 25.42 | 187.78 | -2.28 | 4.24 | 0.4875 | -634.0 | -528.7 | |
| 0.00 | 3.23 | 0.00 | 2.07 | 35.82 | 187.26 | -2.79 | 3.57 | 0.6377 | 753.0 | 671.2 | |
| 2.04 | 3.57 | 1.30 | 2.28 | 35.45 | 185.06 | -4.99 | 6.43 | 0.6353 | 725.5 | 772.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
