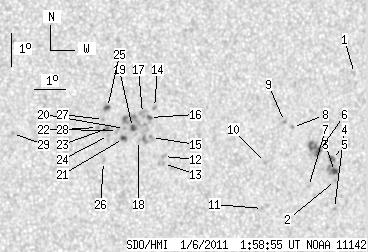

SDO HMI 2011-01-06 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.26 | 95.37 | 7.65 | 51.00 | -14.41 | 207.70 | 19.30 | 238.70 | 0.3748 | -182.3 | -143.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-06 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.93 | -12.35 | 212.27 | 23.86 | 248.23 | 0.4274 | 710.0 | 575.6 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -15.56 | 211.99 | 23.58 | 241.09 | 0.4422 | 641.0 | 544.4 | |
| 2.89 | 8.83 | 1.59 | 4.86 | -15.29 | 211.92 | 23.52 | 241.59 | 0.4395 | 856.1 | 841.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -16.41 | 212.06 | 23.66 | 239.44 | 0.4489 | 743.0 | 633.1 | |
| 0.00 | 3.82 | 0.00 | 2.10 | -14.94 | 211.78 | 23.38 | 242.21 | 0.4352 | 958.0 | 817.5 | |
| 3.74 | 14.87 | 2.05 | 8.13 | -14.71 | 211.32 | 22.92 | 242.28 | 0.4273 | 850.8 | 824.4 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -15.77 | 211.11 | 22.71 | 239.83 | 0.4316 | 782.0 | 674.3 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -14.01 | 210.39 | 21.99 | 242.94 | 0.4097 | 876.0 | 609.3 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -13.83 | 210.11 | 21.71 | 243.06 | 0.4046 | 948.0 | 837.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -15.08 | 209.62 | 21.21 | 239.77 | 0.4061 | 866.0 | 676.1 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -16.46 | 209.67 | 21.27 | 236.84 | 0.4173 | 780.0 | 585.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.96 | 206.30 | 17.90 | 235.97 | 0.3598 | -791.0 | -653.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.17 | 206.32 | 17.92 | 235.49 | 0.3619 | -644.0 | -545.0 | |
| 0.00 | 1.78 | 0.00 | 0.94 | -13.50 | 205.90 | 17.49 | 239.05 | 0.3423 | -732.0 | -569.9 | |
| 0.00 | 2.38 | 0.00 | 1.26 | -14.40 | 205.87 | 17.47 | 236.73 | 0.3492 | -813.0 | -609.8 | |
| 0.59 | 10.79 | 0.31 | 5.69 | -13.80 | 205.76 | 17.36 | 238.08 | 0.3428 | -904.9 | -678.4 | |
| 0.00 | 4.16 | 0.00 | 2.19 | -13.69 | 205.53 | 17.12 | 238.06 | 0.3386 | -804.0 | -728.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.50 | 205.47 | 17.06 | 235.91 | 0.3445 | -622.0 | -632.9 | |
| 2.46 | 16.99 | 1.30 | 8.93 | -14.11 | 205.24 | 16.84 | 236.55 | 0.3382 | -1071.7 | -835.6 | |
| 0.00 | 0.93 | 0.00 | 0.49 | -14.14 | 204.99 | 16.59 | 236.09 | 0.3350 | -1006.0 | -828.7 | |
| 2.04 | 2.63 | 1.07 | 1.38 | -14.44 | 204.98 | 16.58 | 235.31 | 0.3375 | -904.4 | -748.3 | |
| 0.00 | 2.55 | 0.00 | 1.34 | -14.21 | 204.78 | 16.37 | 235.60 | 0.3326 | -933.0 | -724.4 | |
| 0.25 | 1.87 | 0.13 | 0.98 | -14.12 | 204.52 | 16.11 | 235.41 | 0.3284 | -855.3 | -1026.3 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -14.36 | 204.50 | 16.10 | 234.77 | 0.3303 | -797.0 | -637.3 | |
| 2.29 | 3.06 | 1.20 | 1.60 | -13.52 | 204.41 | 16.00 | 236.82 | 0.3217 | -925.9 | -734.3 | |
| 0.00 | 1.61 | 0.00 | 0.85 | -15.15 | 204.40 | 16.00 | 232.65 | 0.3362 | -727.0 | -604.4 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -13.89 | 204.31 | 15.90 | 235.70 | 0.3235 | -1001.0 | -768.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.13 | 204.14 | 15.73 | 234.79 | 0.3233 | -873.0 | -775.7 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -14.35 | 201.48 | 13.08 | 229.29 | 0.2905 | -811.0 | -572.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
