SDO HMI 2011-01-06 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.14 | 79.01 | 8.70 | 42.61 | -14.46 | 207.52 | 20.75 | 240.41 | 0.3951 | -257.4 | -250.3 | |
|
previous
or next observation for the same group /

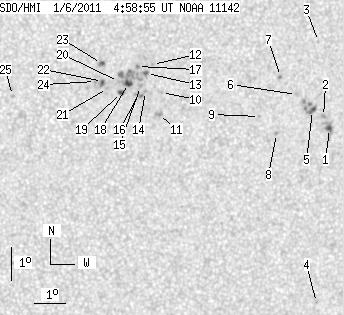

back to the solar disc SDO HMI 2011-01-06 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.55 | 8.33 | 1.42 | 4.65 | -15.33 | 212.01 | 25.24 | 243.03 | 0.4634 | 834.5 | 622.6 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -14.98 | 211.76 | 24.99 | 243.54 | 0.4578 | 1069.0 | 898.3 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -12.74 | 211.34 | 24.57 | 247.92 | 0.4395 | 633.0 | 436.2 | |
| 0.00 | 0.76 | 0.00 | 0.44 | -20.63 | 212.38 | 25.61 | 233.55 | 0.5050 | -693.0 | -557.4 | |
| 3.23 | 11.05 | 1.79 | 6.12 | -14.81 | 211.37 | 24.60 | 243.57 | 0.4513 | 886.5 | 830.0 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -14.34 | 210.78 | 24.01 | 244.06 | 0.4403 | 827.0 | 710.3 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -13.81 | 210.19 | 23.42 | 244.69 | 0.4288 | 966.0 | 903.3 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -15.53 | 210.25 | 23.48 | 241.11 | 0.4404 | 866.0 | 680.0 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -15.03 | 209.63 | 22.86 | 241.57 | 0.4285 | 862.0 | 705.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -14.38 | 206.35 | 19.59 | 239.57 | 0.3783 | -800.0 | -638.4 | |
| 0.00 | 2.89 | 0.00 | 1.55 | -15.04 | 206.32 | 19.55 | 237.99 | 0.3828 | -782.0 | -691.1 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -13.55 | 205.99 | 19.22 | 241.15 | 0.3671 | -584.0 | -433.6 | |
| 1.70 | 25.92 | 0.90 | 13.75 | -13.82 | 205.82 | 19.05 | 240.28 | 0.3666 | -737.3 | -841.0 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -14.36 | 205.84 | 19.07 | 238.99 | 0.3709 | -821.0 | -668.8 | |
| 0.00 | 2.63 | 0.00 | 1.40 | -14.21 | 205.66 | 18.89 | 239.13 | 0.3673 | -807.0 | -712.9 | |
| 0.00 | 3.23 | 0.00 | 1.72 | -14.45 | 205.62 | 18.85 | 238.50 | 0.3686 | -858.0 | -770.8 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -13.62 | 205.52 | 18.75 | 240.41 | 0.3608 | -895.0 | -772.9 | |
| 3.40 | -13.00 | 1.80 | -13.00 | -14.13 | 205.27 | 18.50 | 238.84 | 0.3612 | -1040.1 | 999999 | |
| 2.29 | 2.72 | 1.22 | 1.44 | -14.40 | 205.07 | 18.30 | 237.91 | 0.3606 | -930.7 | -860.8 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -14.08 | 204.95 | 18.18 | 238.55 | 0.3563 | -954.0 | -803.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.29 | 204.61 | 17.84 | 237.57 | 0.3534 | -812.0 | -686.3 | |
| 1.19 | 1.95 | 0.63 | 1.03 | -14.09 | 204.44 | 17.67 | 237.84 | 0.3493 | -934.0 | -1045.6 | |
| 1.78 | 3.06 | 0.94 | 1.61 | -13.55 | 204.36 | 17.59 | 239.11 | 0.3439 | -995.4 | -877.0 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -14.09 | 204.21 | 17.44 | 237.52 | 0.3462 | -1014.0 | -852.9 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -14.55 | 201.62 | 14.85 | 232.22 | 0.3153 | -652.0 | -537.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
