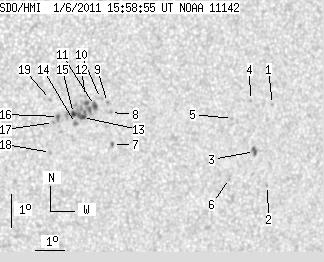

SDO HMI 2011-01-06 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.85 | 54.43 | 5.53 | 30.41 | -14.15 | 206.50 | 25.75 | 245.75 | 0.4633 | -285.1 | -543.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-06 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.65 | -13.50 | 211.88 | 31.13 | 250.26 | 0.5363 | 747.0 | 538.8 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -15.93 | 212.09 | 31.34 | 246.06 | 0.5494 | 780.0 | 564.5 | |
| 2.80 | 3.57 | 1.64 | 2.09 | -14.92 | 211.46 | 30.71 | 247.48 | 0.5363 | 850.5 | 721.2 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -13.40 | 211.09 | 30.34 | 250.05 | 0.5249 | 745.0 | 645.2 | |
| 0.00 | 1.10 | 0.00 | 0.64 | -13.96 | 210.54 | 29.79 | 248.74 | 0.5194 | 829.0 | 635.5 | |
| 0.00 | 1.70 | 0.00 | 0.99 | -15.76 | 210.71 | 29.96 | 245.55 | 0.5300 | 727.0 | 623.3 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -14.85 | 206.53 | 25.78 | 244.45 | 0.4679 | -810.0 | -663.5 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -13.90 | 206.34 | 25.59 | 246.25 | 0.4600 | -671.0 | -554.6 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -13.60 | 206.21 | 25.45 | 246.76 | 0.4565 | -640.0 | -501.2 | |
| 0.00 | 1.87 | 0.00 | 1.04 | -13.49 | 205.96 | 25.21 | 246.82 | 0.4524 | -674.0 | -558.7 | |
| 1.27 | 29.47 | 0.71 | 16.29 | -13.70 | 205.78 | 25.03 | 246.25 | 0.4510 | -761.6 | -829.4 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -13.44 | 205.45 | 24.70 | 246.55 | 0.4449 | -671.0 | -552.7 | |
| 2.21 | -11.00 | 1.22 | -11.00 | -14.07 | 205.42 | 24.67 | 245.20 | 0.4479 | -958.5 | 999999 | |
| 0.00 | 2.29 | 0.00 | 1.27 | -14.26 | 205.21 | 24.46 | 244.65 | 0.4459 | -941.0 | -772.0 | |
| 1.87 | -11.00 | 1.03 | -11.00 | -13.96 | 205.11 | 24.36 | 245.19 | 0.4428 | -1062.0 | 999999 | |
| 1.70 | 2.72 | 0.93 | 1.49 | -14.06 | 204.62 | 23.87 | 244.58 | 0.4365 | -992.1 | -862.7 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -14.25 | 204.47 | 23.72 | 244.07 | 0.4355 | -896.0 | -692.2 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -15.15 | 204.48 | 23.73 | 242.17 | 0.4411 | -813.0 | -684.2 | |
| 0.00 | 1.10 | 0.00 | 0.60 | -13.56 | 204.30 | 23.55 | 245.40 | 0.4290 | -948.0 | -732.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
