SDO HMI 2011-01-06 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.18 | 383.59 | 38.71 | 235.23 | 31.26 | 187.14 | 9.70 | 345.85 | 0.5918 | -1064.8 | -345.9 | |
|
previous
or next observation for the same group /

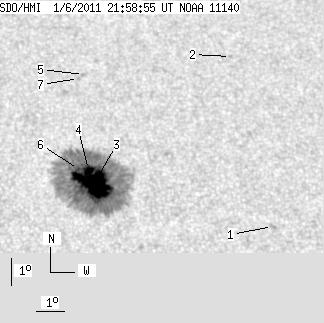

back to the solar disc SDO HMI 2011-01-06 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.55 | 0.00 | 1.57 | 29.73 | 193.19 | 15.75 | 336.73 | 0.5989 | -682.0 | -557.2 | |
| 0.00 | 1.36 | 0.00 | 0.91 | 35.96 | 192.78 | 15.34 | 341.38 | 0.6732 | 536.0 | 480.4 | |
| 56.05 | 376.96 | 34.32 | 230.99 | 31.17 | 187.10 | 9.66 | 345.86 | 0.5903 | -1250.3 | -356.0 | |
| 5.69 | -3.00 | 3.50 | -3.00 | 31.67 | 186.97 | 9.54 | 346.27 | 0.5967 | -910.1 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.10 | 35.19 | 187.19 | 9.76 | 347.53 | 0.6439 | 724.0 | 547.2 | |
| 1.44 | -3.00 | 0.89 | -3.00 | 31.67 | 186.62 | 9.19 | 346.76 | 0.5954 | -712.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 35.04 | 186.99 | 9.56 | 347.72 | 0.6413 | 673.0 | 494.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
