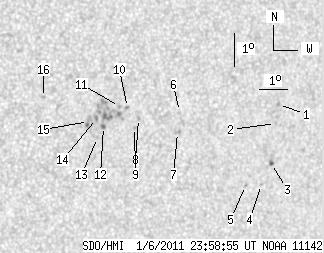

SDO HMI 2011-01-06 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 51.13 | 0.83 | 29.65 | -14.13 | 206.30 | 29.97 | 248.52 | 0.5221 | -335.8 | -545.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-06 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.83 | -13.26 | 211.46 | 35.12 | 252.37 | 0.5898 | 766.0 | 612.4 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -13.83 | 211.44 | 35.11 | 251.42 | 0.5914 | 537.0 | 539.7 | |
| 1.02 | 2.89 | 0.63 | 1.78 | -15.03 | 211.51 | 35.18 | 249.47 | 0.5964 | 773.1 | 501.3 | |
| 0.00 | 0.76 | 0.00 | 0.47 | -15.67 | 211.26 | 34.93 | 248.32 | 0.5955 | 688.0 | 545.2 | |
| 0.00 | 1.10 | 0.00 | 0.67 | -15.72 | 210.67 | 34.34 | 247.98 | 0.5880 | 581.0 | 581.1 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -13.59 | 207.91 | 31.57 | 250.37 | 0.5425 | -466.0 | -482.6 | |
| 0.00 | 1.78 | 0.00 | 1.05 | -14.22 | 207.93 | 31.60 | 249.26 | 0.5453 | -648.0 | -605.1 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -13.84 | 206.49 | 30.16 | 249.22 | 0.5239 | -693.0 | -559.9 | |
| 0.00 | 1.10 | 0.00 | 0.64 | -14.12 | 206.39 | 30.06 | 248.66 | 0.5236 | -669.0 | -539.7 | |
| 0.00 | 1.19 | 0.00 | 0.69 | -13.53 | 206.06 | 29.73 | 249.58 | 0.5166 | -679.0 | -568.2 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -13.50 | 205.78 | 29.45 | 249.48 | 0.5125 | -669.0 | -593.1 | |
| 0.34 | 28.37 | 0.20 | 16.28 | -14.12 | 205.31 | 28.98 | 248.06 | 0.5086 | -903.5 | -733.8 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -14.45 | 205.15 | 28.81 | 247.33 | 0.5079 | -746.0 | -608.2 | |
| 0.00 | 1.87 | 0.00 | 1.07 | -13.89 | 205.03 | 28.70 | 248.34 | 0.5037 | -1096.0 | -937.2 | |
| 0.00 | 4.08 | 0.00 | 2.33 | -13.98 | 204.77 | 28.44 | 248.00 | 0.5004 | -922.0 | -772.6 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -13.31 | 203.14 | 26.81 | 248.34 | 0.4742 | -703.0 | -575.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
