SDO HMI 2011-01-07 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 46.52 | 0.00 | 27.37 | -14.22 | 207.06 | 31.27 | 249.09 | 0.5402 | -242.0 | -387.6 | |
|
previous
or next observation for the same group /

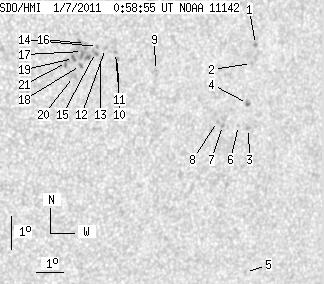

back to the solar disc SDO HMI 2011-01-07 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 1.05 | -13.24 | 211.46 | 35.68 | 252.59 | 0.5973 | 784.0 | 683.3 | |
| 0.00 | 1.61 | 0.00 | 1.00 | -13.82 | 211.41 | 35.63 | 251.64 | 0.5983 | 675.0 | 544.5 | |
| 0.00 | 1.87 | 0.00 | 1.16 | -15.77 | 211.67 | 35.89 | 248.59 | 0.6083 | 678.0 | 561.8 | |
| 0.00 | 2.63 | 0.00 | 1.63 | -15.02 | 211.49 | 35.70 | 249.71 | 0.6032 | 886.0 | 668.7 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -20.13 | 212.60 | 36.82 | 242.30 | 0.6378 | -618.0 | -476.8 | |
| 0.00 | 0.76 | 0.00 | 0.47 | -15.69 | 211.28 | 35.50 | 248.55 | 0.6029 | 692.0 | 546.6 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -15.71 | 210.68 | 34.90 | 248.25 | 0.5952 | 717.0 | 554.8 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -15.60 | 210.47 | 34.69 | 248.35 | 0.5920 | 803.0 | 716.6 | |
| 0.00 | 0.93 | 0.00 | 0.55 | -14.15 | 207.95 | 32.16 | 249.66 | 0.5527 | -769.0 | -673.6 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -13.83 | 206.55 | 30.76 | 249.55 | 0.5321 | -677.0 | -582.7 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -13.65 | 206.45 | 30.66 | 249.83 | 0.5301 | -590.0 | -541.5 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -13.55 | 206.08 | 30.30 | 249.84 | 0.5245 | -714.0 | -559.8 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -13.82 | 205.94 | 30.16 | 249.27 | 0.5237 | -420.0 | -497.4 | |
| 0.00 | 1.19 | 0.00 | 0.69 | -13.50 | 205.79 | 30.01 | 249.79 | 0.5203 | -662.0 | -555.1 | |
| 0.00 | 2.63 | 0.00 | 1.52 | -13.68 | 205.75 | 29.96 | 249.43 | 0.5204 | -750.0 | -701.3 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -13.42 | 205.36 | 29.58 | 249.72 | 0.5140 | -715.0 | -549.0 | |
| 0.00 | 13.00 | 0.00 | 7.49 | -13.66 | 205.29 | 29.51 | 249.23 | 0.5139 | -832.0 | -779.8 | |
| 0.00 | 2.12 | 0.00 | 1.23 | -14.08 | 205.28 | 29.50 | 248.43 | 0.5156 | -925.0 | -756.3 | |
| 0.00 | 2.21 | 0.00 | 1.27 | -13.88 | 205.01 | 29.22 | 248.66 | 0.5109 | -1082.0 | -893.4 | |
| 0.00 | 2.97 | 0.00 | 1.71 | -14.42 | 205.08 | 29.30 | 247.70 | 0.5144 | -727.0 | -623.8 | |
| 0.00 | 3.74 | 0.00 | 2.15 | -14.01 | 204.78 | 29.00 | 248.30 | 0.5083 | -837.0 | -792.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
