SDO HMI 2011-01-07 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.39 | 33.84 | 2.03 | 20.71 | -14.12 | 206.63 | 34.67 | 250.79 | 0.5858 | -397.9 | -384.9 | |
|
previous
or next observation for the same group /

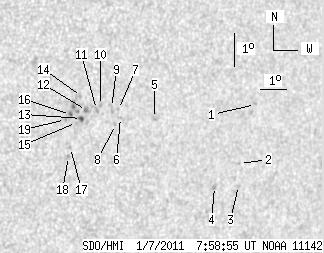

back to the solar disc SDO HMI 2011-01-07 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.77 | -13.30 | 211.81 | 39.85 | 253.80 | 0.6517 | 695.0 | 582.6 | |
| 0.00 | 1.10 | 0.00 | 0.72 | -15.08 | 211.55 | 39.59 | 251.03 | 0.6530 | 630.0 | 430.2 | |
| 0.00 | 1.44 | 0.00 | 0.95 | -15.74 | 211.67 | 39.70 | 250.08 | 0.6563 | 615.0 | 477.9 | |
| 0.00 | 2.29 | 0.00 | 1.48 | -15.81 | 210.73 | 38.76 | 249.66 | 0.6448 | 797.0 | 556.9 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -13.86 | 208.02 | 36.06 | 251.76 | 0.6039 | -664.0 | -654.3 | |
| 0.00 | 0.93 | 0.00 | 0.57 | -13.88 | 206.76 | 34.79 | 251.27 | 0.5871 | -595.0 | -470.7 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -13.64 | 206.64 | 34.68 | 251.63 | 0.5848 | -574.0 | -444.1 | |
| 0.00 | 0.76 | 0.00 | 0.47 | -14.10 | 206.61 | 34.64 | 250.86 | 0.5858 | -569.0 | -489.1 | |
| 0.00 | 2.21 | 0.00 | 1.34 | -13.59 | 206.37 | 34.41 | 251.61 | 0.5811 | -398.0 | -478.5 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -13.55 | 205.96 | 34.00 | 251.53 | 0.5753 | -565.0 | -452.7 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -13.67 | 205.84 | 33.87 | 251.27 | 0.5740 | -704.0 | -640.4 | |
| 0.00 | 3.48 | 0.00 | 2.10 | -13.71 | 205.48 | 33.51 | 251.05 | 0.5693 | -894.0 | -706.8 | |
| 1.95 | 2.46 | 1.17 | 1.48 | -13.96 | 205.34 | 33.37 | 250.57 | 0.5682 | -795.4 | -817.0 | |
| 0.00 | 0.76 | 0.00 | 0.46 | -13.30 | 205.23 | 33.27 | 251.66 | 0.5646 | -649.0 | -595.2 | |
| 0.00 | 0.93 | 0.00 | 0.56 | -14.09 | 205.17 | 33.21 | 250.29 | 0.5665 | -657.0 | -524.2 | |
| 1.44 | 8.33 | 0.86 | 4.98 | -13.85 | 204.92 | 32.95 | 250.58 | 0.5622 | -857.9 | -733.4 | |
| 0.00 | 1.10 | 0.00 | 0.66 | -14.84 | 205.08 | 33.12 | 248.96 | 0.5681 | -791.0 | -583.4 | |
| 0.00 | 0.93 | 0.00 | 0.56 | -15.11 | 205.06 | 33.09 | 248.48 | 0.5688 | -766.0 | -605.3 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -14.01 | 204.76 | 32.80 | 250.24 | 0.5606 | -815.0 | -672.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
