SDO HMI 2011-01-07 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.39 | 0.00 | 15.83 | -13.83 | 205.66 | 36.43 | 251.94 | 0.6087 | -693.4 | -596.5 | |
|
previous
or next observation for the same group /

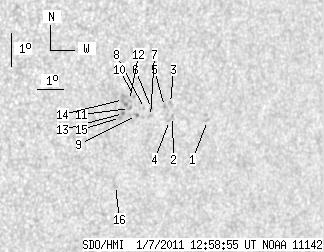

back to the solar disc SDO HMI 2011-01-07 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.82 | -13.97 | 208.15 | 38.91 | 252.53 | 0.6414 | -512.0 | -408.3 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -13.90 | 206.78 | 37.54 | 252.21 | 0.6235 | -548.0 | -459.6 | |
| 0.00 | 1.70 | 0.00 | 1.07 | -13.52 | 206.63 | 37.39 | 252.77 | 0.6205 | -555.0 | -408.9 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -14.03 | 206.68 | 37.45 | 251.99 | 0.6227 | -645.0 | -534.5 | |
| 0.00 | 1.61 | 0.00 | 1.01 | -13.62 | 206.42 | 37.18 | 252.55 | 0.6180 | -691.0 | -609.4 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -13.69 | 205.94 | 36.70 | 252.27 | 0.6119 | -796.0 | -594.9 | |
| 0.00 | 1.87 | 0.00 | 1.17 | -13.93 | 205.94 | 36.71 | 251.88 | 0.6127 | -568.0 | -453.8 | |
| 0.00 | 0.68 | 0.00 | 0.42 | -13.70 | 205.67 | 36.44 | 252.16 | 0.6085 | -664.0 | -549.1 | |
| 0.00 | 1.87 | 0.00 | 1.16 | -13.92 | 205.41 | 36.18 | 251.72 | 0.6057 | -804.0 | -729.5 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -13.36 | 205.23 | 36.00 | 252.58 | 0.6017 | -587.0 | -515.6 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -13.72 | 205.11 | 35.88 | 251.94 | 0.6011 | -792.0 | -702.0 | |
| 0.00 | 0.59 | 0.00 | 0.37 | -13.49 | 205.07 | 35.84 | 252.31 | 0.5998 | -680.0 | -643.4 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -13.88 | 204.91 | 35.68 | 251.61 | 0.5990 | -1018.0 | -864.9 | |
| 0.00 | 5.78 | 0.00 | 3.56 | -13.46 | 204.84 | 35.61 | 252.27 | 0.5967 | -794.0 | -677.0 | |
| 0.00 | 1.61 | 0.00 | 1.00 | -14.01 | 204.82 | 35.59 | 251.38 | 0.5982 | -771.0 | -661.4 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -16.05 | 205.03 | 35.80 | 248.16 | 0.6079 | -669.0 | -558.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
