SDO HMI 2011-01-07 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.19 | 313.92 | 44.62 | 207.19 | 31.36 | 186.19 | 23.03 | 329.66 | 0.6637 | -889.1 | -363.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-07 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

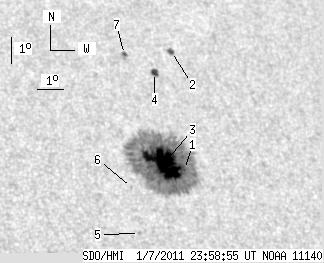

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.02 | 301.44 | 0.67 | 198.64 | 31.01 | 186.86 | 23.70 | 328.67 | 0.6647 | -606.8 | -364.8 | |
| 2.80 | 3.14 | 1.98 | 2.22 | 35.39 | 187.64 | 24.48 | 331.67 | 0.7143 | 795.8 | 722.2 | |
| 57.42 | -1.00 | 37.85 | -1.00 | 31.25 | 186.17 | 23.01 | 329.59 | 0.6625 | -1071.7 | 999999 | |
| 4.08 | 4.76 | 2.82 | 3.29 | 34.57 | 186.72 | 23.55 | 331.88 | 0.7006 | -543.4 | -372.5 | |
| 0.00 | 1.44 | 0.00 | 0.91 | 28.69 | 184.65 | 21.48 | 328.91 | 0.6244 | -645.0 | -502.5 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 30.31 | 184.72 | 21.55 | 330.32 | 0.6428 | -724.0 | -614.3 | |
| 1.87 | 2.12 | 1.30 | 1.47 | 35.22 | 185.74 | 22.57 | 333.36 | 0.7017 | 649.3 | 581.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
