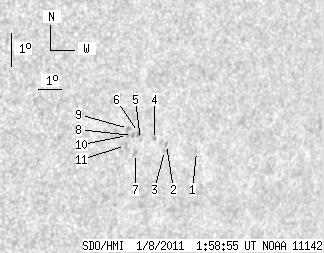

SDO HMI 2011-01-08 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.81 | 0.00 | 11.62 | -13.74 | 205.71 | 43.64 | 254.12 | 0.6992 | -568.9 | -509.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-08 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.61 | -13.93 | 208.00 | 45.93 | 254.33 | 0.7266 | -517.0 | -458.5 | |
| 0.00 | 1.10 | 0.00 | 0.77 | -13.78 | 206.66 | 44.59 | 254.28 | 0.7107 | -668.0 | -556.4 | |
| 0.00 | 1.87 | 0.00 | 1.31 | -13.96 | 206.62 | 44.55 | 254.01 | 0.7106 | -198.0 | -289.2 | |
| 0.00 | 1.44 | 0.00 | 1.00 | -13.65 | 206.12 | 44.05 | 254.34 | 0.7041 | -649.0 | -511.4 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -13.68 | 205.54 | 43.47 | 254.18 | 0.6971 | -586.0 | -505.3 | |
| 0.00 | 2.80 | 0.00 | 1.93 | -13.47 | 205.40 | 43.34 | 254.45 | 0.6951 | -598.0 | -546.8 | |
| 0.00 | 2.29 | 0.00 | 1.58 | -14.11 | 205.43 | 43.36 | 253.55 | 0.6966 | -467.0 | -409.6 | |
| 0.00 | 1.53 | 0.00 | 1.05 | -13.57 | 205.18 | 43.11 | 254.25 | 0.6926 | -799.0 | -662.7 | |
| 0.00 | 1.19 | 0.00 | 0.81 | -13.37 | 204.97 | 42.90 | 254.50 | 0.6896 | -732.0 | -644.0 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -13.58 | 204.97 | 42.90 | 254.20 | 0.6901 | -632.0 | -653.0 | |
| 0.00 | 2.21 | 0.00 | 1.51 | -13.89 | 204.96 | 42.89 | 253.76 | 0.6905 | -412.0 | -528.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
