SDO HMI 2011-01-08 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.24 | 0.00 | 9.27 | -13.64 | 205.44 | 44.46 | 254.47 | 0.7088 | -641.5 | -580.1 | |
|
previous
or next observation for the same group /

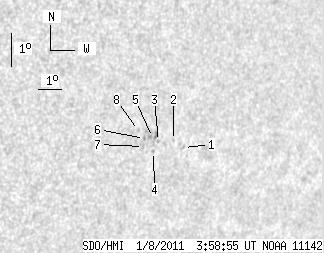

back to the solar disc SDO HMI 2011-01-08 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.91 | -13.79 | 206.71 | 45.73 | 254.49 | 0.7240 | -608.0 | -513.5 | |
| 0.00 | 0.85 | 0.00 | 0.60 | -13.61 | 206.22 | 45.25 | 254.66 | 0.7181 | -712.0 | -637.1 | |
| 0.00 | 0.42 | 0.00 | 0.30 | -13.67 | 205.59 | 44.62 | 254.45 | 0.7108 | -559.0 | -484.2 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -13.97 | 205.45 | 44.48 | 254.00 | 0.7097 | -485.0 | -414.7 | |
| 0.00 | 6.54 | 0.00 | 4.57 | -13.56 | 205.31 | 44.33 | 254.55 | 0.7072 | -627.0 | -588.5 | |
| 0.00 | 1.70 | 0.00 | 1.18 | -13.60 | 204.98 | 44.01 | 254.42 | 0.7034 | -868.0 | -692.0 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -13.84 | 205.00 | 44.02 | 254.08 | 0.7040 | -726.0 | -681.8 | |
| 0.00 | 0.59 | 0.00 | 0.41 | -13.38 | 204.68 | 43.70 | 254.68 | 0.6993 | -547.0 | -441.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
