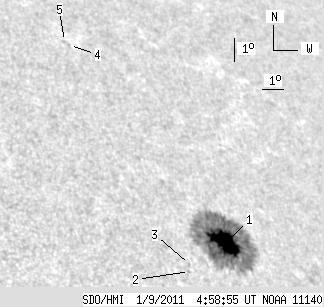

SDO HMI 2011-01-09 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.41 | 249.39 | 29.80 | 193.56 | 31.31 | 185.07 | 37.80 | 317.14 | 0.7724 | -881.6 | -273.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-09 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.41 | 246.00 | 29.80 | 190.87 | 31.25 | 185.11 | 37.84 | 317.06 | 0.7723 | -986.3 | -278.8 | |
| 0.00 | 0.59 | 0.00 | 0.44 | 30.13 | 183.06 | 35.80 | 317.33 | 0.7487 | -801.0 | -699.7 | |
| 0.00 | 0.76 | 0.00 | 0.57 | 30.38 | 183.16 | 35.90 | 317.51 | 0.7513 | -698.0 | -620.9 | |
| 0.00 | 1.02 | 0.00 | 0.84 | 38.52 | 181.85 | 34.59 | 326.27 | 0.8022 | 584.0 | 501.2 | |
| 0.00 | 1.02 | 0.00 | 0.84 | 38.67 | 181.71 | 34.45 | 326.51 | 0.8025 | 511.0 | 363.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
