SDO HMI 2011-01-09 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.39 | 249.48 | 29.23 | 194.96 | 31.24 | 184.97 | 38.25 | 316.79 | 0.7754 | -865.9 | -272.4 | |
|
previous
or next observation for the same group /

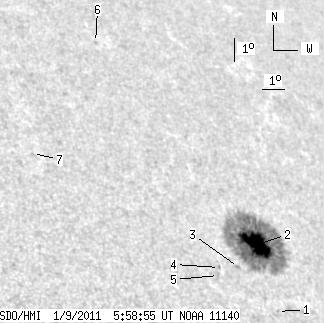

back to the solar disc SDO HMI 2011-01-09 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.77 | 28.86 | 184.86 | 38.15 | 314.34 | 0.7587 | -507.0 | -442.7 | |
| 37.39 | 241.68 | 29.23 | 189.00 | 31.23 | 185.04 | 38.32 | 316.73 | 0.7758 | -990.6 | -271.0 | |
| 0.00 | 1.61 | 0.00 | 1.23 | 30.36 | 183.85 | 37.13 | 316.63 | 0.7608 | -606.0 | -568.5 | |
| 0.00 | 1.02 | 0.00 | 0.77 | 30.32 | 183.02 | 36.31 | 317.17 | 0.7541 | -614.0 | -579.9 | |
| 0.00 | 2.29 | 0.00 | 1.71 | 30.03 | 182.86 | 36.14 | 316.98 | 0.7507 | -895.0 | -603.8 | |
| 0.00 | 1.10 | 0.00 | 0.92 | 38.69 | 181.69 | 34.97 | 326.17 | 0.8057 | 591.0 | 491.2 | |
| 0.00 | 0.76 | 0.00 | 0.56 | 34.22 | 176.82 | 30.10 | 325.79 | 0.7400 | 482.0 | 394.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
