SDO HMI 2011-01-09 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.40 | 226.59 | 29.21 | 192.56 | 31.33 | 184.67 | 43.43 | 313.71 | 0.8147 | -839.9 | -228.5 | |
|
previous
or next observation for the same group /

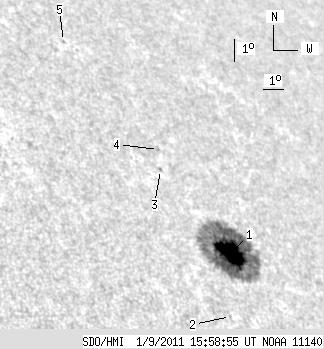

back to the solar disc SDO HMI 2011-01-09 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.40 | 222.52 | 29.21 | 189.04 | 31.28 | 184.70 | 43.46 | 313.64 | 0.8146 | -934.5 | -230.0 | |
| 0.00 | 0.85 | 0.00 | 0.69 | 28.96 | 183.45 | 42.20 | 311.91 | 0.7921 | -421.0 | -368.5 | |
| 0.00 | 1.53 | 0.00 | 1.32 | 34.22 | 183.11 | 41.86 | 317.56 | 0.8199 | -218.0 | -179.9 | |
| 0.00 | 1.10 | 0.00 | 0.97 | 34.99 | 183.49 | 42.25 | 318.09 | 0.8269 | -389.0 | -270.3 | |
| 0.00 | 0.59 | 0.00 | 0.54 | 39.06 | 181.52 | 40.27 | 323.14 | 0.8389 | 433.0 | 348.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
