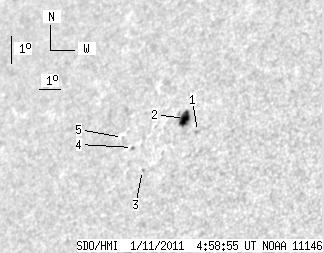

SDO HMI 2011-01-11 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.20 | 19.20 | 7.95 | 15.02 | 23.29 | 77.18 | -43.74 | 55.15 | 0.7761 | -484.5 | -212.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-11 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.43 | 23.04 | 78.21 | -42.71 | 54.88 | 0.7655 | 297.0 | 175.4 | |
| 10.20 | 14.02 | 7.95 | 10.94 | 23.51 | 77.45 | -43.47 | 54.76 | 0.7748 | -693.9 | -415.8 | |
| 0.00 | 1.02 | 0.00 | 0.80 | 21.86 | 76.24 | -44.68 | 57.30 | 0.7778 | -619.0 | -556.8 | |
| 0.00 | 1.44 | 0.00 | 1.16 | 22.66 | 75.46 | -45.46 | 56.77 | 0.7886 | -442.0 | -299.2 | |
| 0.00 | 0.85 | 0.00 | 0.69 | 23.02 | 74.85 | -46.08 | 56.67 | 0.7958 | 491.0 | 406.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
