SDO HMI 2011-01-11 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.01 | 34.24 | 12.87 | 24.50 | 22.76 | 77.03 | -38.43 | 52.60 | 0.7240 | -417.3 | -15.8 | |
|
previous
or next observation for the same group /

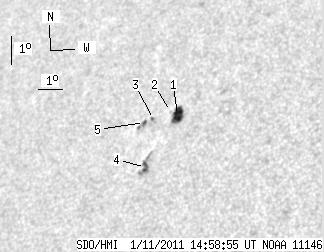

back to the solar disc SDO HMI 2011-01-11 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.06 | 15.04 | 8.62 | 10.74 | 23.37 | 77.52 | -37.94 | 51.55 | 0.7230 | -786.9 | -572.5 | |
| 0.00 | 0.85 | 0.00 | 0.61 | 23.52 | 77.19 | -38.27 | 51.60 | 0.7271 | -242.0 | -222.3 | |
| 0.00 | 1.87 | 0.00 | 1.35 | 23.29 | 76.57 | -38.89 | 52.28 | 0.7315 | -735.0 | -656.0 | |
| 4.25 | 12.06 | 3.02 | 8.59 | 21.70 | 76.77 | -38.69 | 54.04 | 0.7199 | 700.0 | 520.6 | |
| 1.70 | 4.42 | 1.23 | 3.21 | 23.20 | 76.22 | -39.24 | 52.59 | 0.7342 | -454.3 | -426.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
