SDO HMI 2011-01-11 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.49 | 30.41 | 15.17 | 21.45 | 22.89 | 76.98 | -37.37 | 51.73 | 0.7147 | -411.7 | -77.2 | |
|
previous
or next observation for the same group /

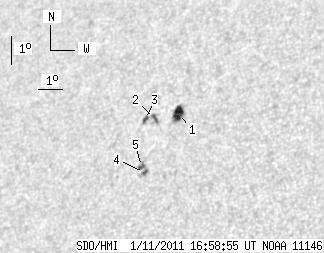

back to the solar disc SDO HMI 2011-01-11 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.87 | 13.00 | 7.65 | 9.14 | 23.41 | 77.55 | -36.81 | 50.72 | 0.7126 | -808.5 | -657.5 | |
| 3.06 | 5.35 | 2.18 | 3.81 | 23.29 | 76.62 | -37.74 | 51.51 | 0.7207 | -712.4 | -400.2 | |
| 2.72 | 3.82 | 1.95 | 2.73 | 23.28 | 76.25 | -38.10 | 51.77 | 0.7240 | -419.2 | -257.0 | |
| 2.04 | 8.24 | 1.42 | 5.77 | 21.51 | 76.78 | -37.57 | 53.54 | 0.7078 | 774.6 | 568.1 | |
| 2.80 | -4.00 | 1.97 | -4.00 | 21.72 | 76.60 | -37.76 | 53.41 | 0.7109 | 614.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
