SDO HMI 2011-01-12 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.17 | 20.46 | 3.15 | 12.39 | 23.03 | 77.64 | -22.44 | 37.73 | 0.5767 | -183.7 | -351.8 | |
|
previous
or next observation for the same group /

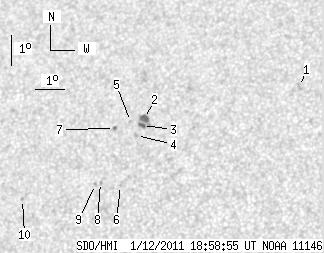

back to the solar disc SDO HMI 2011-01-12 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.38 | 0.00 | 1.41 | 24.36 | 82.63 | -17.45 | 29.85 | 0.5511 | -726.0 | -551.9 | |
| 2.80 | 10.87 | 1.70 | 6.60 | 23.43 | 77.46 | -22.62 | 37.52 | 0.5818 | -773.6 | -712.2 | |
| 1.44 | -2.00 | 0.88 | -2.00 | 23.20 | 77.43 | -22.65 | 37.82 | 0.5795 | -938.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.93 | 22.87 | 77.28 | -22.80 | 38.38 | 0.5774 | -877.0 | -659.1 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 23.34 | 76.98 | -23.10 | 38.18 | 0.5850 | -484.0 | -444.3 | |
| 0.00 | 0.68 | 0.00 | 0.41 | 21.24 | 77.01 | -23.07 | 40.67 | 0.5627 | 694.0 | 563.2 | |
| 0.93 | 1.10 | 0.57 | 0.67 | 23.13 | 76.46 | -23.62 | 39.03 | 0.5873 | -657.3 | -783.5 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 21.36 | 76.30 | -23.78 | 41.36 | 0.5707 | 762.0 | 635.6 | |
| 0.00 | 1.10 | 0.00 | 0.67 | 21.30 | 76.13 | -23.95 | 41.62 | 0.5716 | 748.0 | 600.1 | |
| 0.00 | 0.93 | 0.00 | 0.57 | 20.89 | 73.66 | -26.42 | 44.85 | 0.5918 | 534.0 | 516.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
