SDO HMI 2011-01-13 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.22 | 25.14 | 4.27 | 14.81 | 22.75 | 76.80 | -18.89 | 33.49 | 0.5436 | 75.8 | -168.9 | |
|
previous
or next observation for the same group /

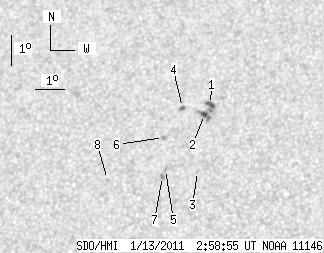

back to the solar disc SDO HMI 2011-01-13 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.40 | 15.55 | 2.01 | 9.17 | 23.40 | 77.35 | -18.33 | 32.01 | 0.5467 | -763.0 | -747.6 | |
| 2.55 | -1.00 | 1.50 | -1.00 | 23.07 | 77.20 | -18.49 | 32.57 | 0.5440 | -816.2 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.30 | 21.19 | 77.22 | -18.46 | 34.65 | 0.5215 | 616.0 | 486.2 | |
| 1.27 | 2.21 | 0.76 | 1.31 | 23.32 | 76.41 | -19.27 | 33.36 | 0.5532 | -628.5 | -572.8 | |
| 0.00 | 1.44 | 0.00 | 0.84 | 21.29 | 76.13 | -19.55 | 36.05 | 0.5319 | 790.0 | 575.8 | |
| 0.00 | 2.21 | 0.00 | 1.30 | 22.34 | 75.91 | -19.77 | 35.12 | 0.5459 | 833.0 | 665.4 | |
| 0.00 | 2.29 | 0.00 | 1.34 | 21.06 | 76.06 | -19.62 | 36.42 | 0.5299 | 944.0 | 721.6 | |
| 0.00 | 0.93 | 0.00 | 0.55 | 21.01 | 74.21 | -21.47 | 38.91 | 0.5460 | 755.0 | 551.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
