SDO HMI 2011-01-13 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.02 | 15.37 | 0.59 | 8.85 | 22.62 | 76.79 | -14.53 | 27.19 | 0.5097 | -473.3 | -372.3 | |
|
previous
or next observation for the same group /

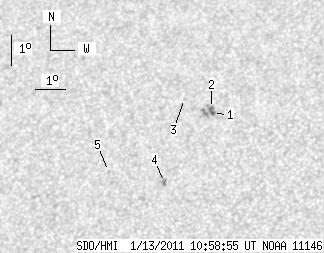

back to the solar disc SDO HMI 2011-01-13 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.68 | 10.45 | 0.39 | 6.03 | 23.08 | 77.34 | -13.98 | 25.85 | 0.5118 | -967.0 | -720.6 | |
| 0.34 | -1.00 | 0.20 | -1.00 | 23.25 | 77.29 | -14.03 | 25.78 | 0.5144 | -909.5 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.54 | 23.60 | 76.35 | -14.97 | 26.90 | 0.5252 | -552.0 | -429.0 | |
| 0.00 | 2.97 | 0.00 | 1.69 | 20.84 | 76.00 | -15.32 | 30.27 | 0.4920 | 1009.0 | 792.2 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 21.24 | 74.11 | -17.21 | 32.74 | 0.5120 | -667.0 | -446.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
