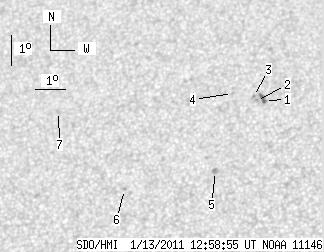

SDO HMI 2011-01-13 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 13.07 | 0.83 | 7.52 | 22.42 | 75.80 | -14.42 | 27.12 | 0.5071 | -120.0 | -124.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-13 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 4.08 | 0.83 | 2.34 | 23.09 | 77.33 | -12.89 | 24.08 | 0.5051 | -908.4 | -816.8 | |
| 0.00 | 1.61 | 0.00 | 0.93 | 23.09 | 77.07 | -13.16 | 24.51 | 0.5068 | -934.0 | -752.8 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 23.23 | 76.95 | -13.27 | 24.57 | 0.5093 | -750.0 | -612.8 | |
| 0.00 | 0.76 | 0.00 | 0.44 | 23.34 | 76.25 | -13.97 | 25.60 | 0.5153 | -627.0 | -516.6 | |
| 0.00 | 2.63 | 0.00 | 1.49 | 20.78 | 75.95 | -14.27 | 28.60 | 0.4834 | 1042.0 | 745.4 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 20.26 | 73.03 | -17.19 | 33.85 | 0.4998 | 680.0 | 585.0 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 22.88 | 70.47 | -19.75 | 34.46 | 0.5523 | 523.0 | 485.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
