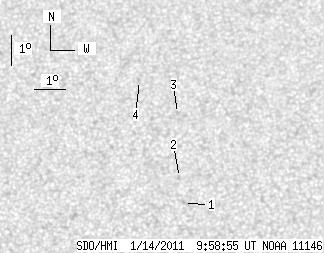

SDO HMI 2011-01-14 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.67 | 0.00 | 2.03 | 22.56 | 75.20 | -3.50 | 7.02 | 0.4594 | -110.0 | -133.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-14 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.37 | 20.32 | 75.77 | -2.92 | 6.51 | 0.4236 | 420.0 | 373.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 21.17 | 75.63 | -3.07 | 6.58 | 0.4372 | 432.0 | 416.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 23.28 | 75.52 | -3.18 | 6.24 | 0.4702 | -770.0 | -593.3 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 24.40 | 74.26 | -4.44 | 8.31 | 0.4896 | -522.0 | -500.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
