SDO HMI 2011-02-08 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 13.44 | 0.88 | 9.82 | -20.33 | 64.37 | -46.79 | 111.76 | 0.7383 | -243.1 | -68.9 | |
|
previous
or next observation for the same group /

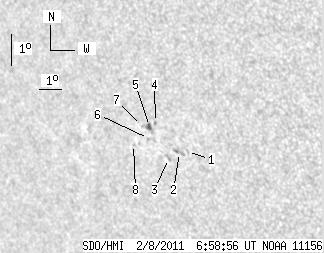

back to the solar disc SDO HMI 2011-02-08 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.86 | -20.66 | 65.34 | -45.83 | 112.43 | 0.7284 | 504.0 | 372.9 | |
| 0.00 | 4.02 | 0.00 | 2.91 | -20.66 | 64.97 | -46.19 | 112.34 | 0.7324 | -95.0 | 107.1 | |
| 0.00 | 2.22 | 0.00 | 1.63 | -20.80 | 64.41 | -46.76 | 112.39 | 0.7389 | 478.0 | 383.3 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -19.68 | 64.25 | -46.92 | 110.86 | 0.7383 | -557.0 | -541.8 | |
| 1.20 | 2.74 | 0.88 | 2.01 | -19.78 | 63.94 | -47.23 | 110.92 | 0.7419 | -816.9 | -657.5 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -20.13 | 63.75 | -47.42 | 111.35 | 0.7446 | -506.0 | -445.9 | |
| 0.00 | 0.68 | 0.00 | 0.51 | -19.72 | 63.59 | -47.58 | 110.77 | 0.7456 | -398.0 | -357.2 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -20.26 | 62.99 | -48.18 | 111.36 | 0.7530 | -623.0 | -510.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
