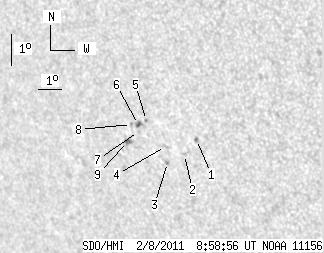

SDO HMI 2011-02-08 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 16.92 | 1.48 | 12.19 | -20.20 | 64.18 | -45.90 | 111.80 | 0.7281 | -190.0 | -213.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-08 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.13 | -20.41 | 66.17 | -43.90 | 112.58 | 0.7062 | 770.0 | 612.2 | |
| 0.00 | 1.28 | 0.00 | 0.91 | -20.82 | 65.49 | -44.59 | 112.96 | 0.7150 | 685.0 | 460.3 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -21.00 | 64.66 | -45.42 | 112.99 | 0.7247 | 553.0 | 448.3 | |
| 0.00 | 1.80 | 0.00 | 1.28 | -20.51 | 64.75 | -45.32 | 112.35 | 0.7225 | -210.0 | -85.7 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -19.67 | 64.21 | -45.87 | 111.08 | 0.7266 | -533.0 | -585.8 | |
| 2.05 | 3.33 | 1.48 | 2.41 | -19.76 | 63.81 | -46.26 | 111.11 | 0.7313 | -755.7 | -732.4 | |
| 0.00 | 1.28 | 0.00 | 0.93 | -19.97 | 63.73 | -46.34 | 111.37 | 0.7326 | -658.0 | -497.7 | |
| 0.00 | 1.11 | 0.00 | 0.81 | -19.74 | 63.50 | -46.57 | 111.01 | 0.7346 | -559.0 | -434.7 | |
| 0.00 | 3.76 | 0.00 | 2.76 | -20.23 | 63.13 | -46.95 | 111.59 | 0.7398 | -731.0 | -648.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
