SDO HMI 2011-02-08 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.13 | 29.32 | 8.47 | 20.30 | -20.24 | 63.90 | -43.44 | 112.49 | 0.7003 | -169.4 | -152.8 | |
|
previous
or next observation for the same group /

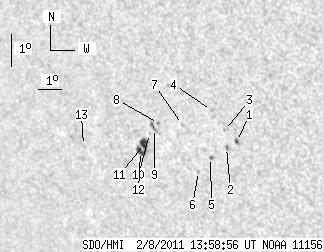

back to the solar disc SDO HMI 2011-02-08 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 1.88 | 1.08 | 1.25 | -20.46 | 66.80 | -40.54 | 113.68 | 0.6672 | 585.3 | 530.3 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -20.62 | 66.33 | -41.00 | 113.75 | 0.6732 | 677.0 | 500.3 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -20.10 | 66.42 | -40.92 | 113.02 | 0.6707 | 499.0 | 457.5 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -19.46 | 66.07 | -41.26 | 111.99 | 0.6729 | 709.0 | 592.5 | |
| 0.34 | 1.54 | 0.23 | 1.04 | -20.87 | 65.57 | -41.76 | 113.86 | 0.6829 | 638.8 | 502.6 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -21.25 | 64.92 | -42.41 | 114.21 | 0.6915 | 500.0 | 410.9 | |
| 0.00 | 1.20 | 0.00 | 0.82 | -19.79 | 64.74 | -42.60 | 112.08 | 0.6896 | -601.0 | -491.4 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -19.69 | 63.74 | -43.60 | 111.66 | 0.7009 | -596.0 | -573.8 | |
| 0.00 | 5.39 | 0.00 | 3.74 | -19.82 | 63.52 | -43.82 | 111.79 | 0.7038 | -462.0 | -497.4 | |
| 0.00 | 0.68 | 0.00 | 0.48 | -19.96 | 63.25 | -44.08 | 111.91 | 0.7072 | -508.0 | -449.4 | |
| 5.21 | 12.39 | 3.66 | 8.73 | -20.24 | 62.93 | -44.41 | 112.22 | 0.7115 | -773.4 | -647.7 | |
| 4.96 | -11.00 | 3.50 | -11.00 | -20.47 | 62.67 | -44.67 | 112.46 | 0.7150 | -625.3 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -20.09 | 60.22 | -47.12 | 111.37 | 0.7413 | 254.0 | 295.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
