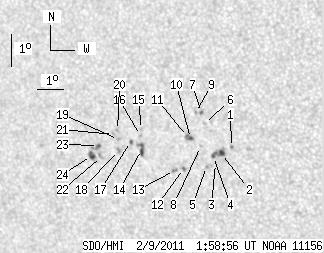

SDO HMI 2011-02-09 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.53 | 50.67 | 10.94 | 31.56 | -20.32 | 65.04 | -35.69 | 115.33 | 0.6073 | -23.8 | -17.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-09 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.88 | -20.51 | 67.85 | -32.88 | 116.97 | 0.5728 | 971.0 | 860.8 | |
| 2.82 | 8.46 | 1.71 | 5.14 | -20.67 | 67.43 | -33.30 | 117.01 | 0.5788 | 898.6 | 695.2 | |
| 0.00 | 0.34 | 0.00 | 0.21 | -20.96 | 67.13 | -33.60 | 117.32 | 0.5839 | 708.0 | 579.8 | |
| 0.43 | -2.00 | 0.26 | -2.00 | -20.74 | 67.11 | -33.62 | 116.96 | 0.5832 | 716.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -21.03 | 66.77 | -33.96 | 117.25 | 0.5888 | 651.0 | 590.5 | |
| 0.00 | 1.28 | 0.00 | 0.78 | -19.73 | 67.02 | -33.71 | 115.24 | 0.5799 | 633.0 | 403.1 | |
| 1.45 | 1.54 | 0.88 | 0.93 | -19.39 | 66.98 | -33.75 | 114.67 | 0.5789 | 708.1 | 746.0 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -20.41 | 66.69 | -34.03 | 116.21 | 0.5869 | 520.0 | 334.9 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -19.38 | 66.76 | -33.97 | 114.54 | 0.5817 | 713.0 | 527.2 | |
| 0.85 | 4.10 | 0.52 | 2.51 | -20.15 | 66.38 | -34.35 | 115.63 | 0.5897 | 802.3 | 604.3 | |
| 0.26 | -10.00 | 0.16 | -10.00 | -20.08 | 66.28 | -34.45 | 115.47 | 0.5907 | 680.7 | 999999 | |
| 0.94 | 1.54 | 0.58 | 0.95 | -21.04 | 65.88 | -34.85 | 116.82 | 0.5999 | 440.4 | 317.4 | |
| 0.00 | 2.22 | 0.00 | 1.38 | -21.08 | 65.52 | -35.21 | 116.70 | 0.6045 | 603.0 | 437.0 | |
| 4.45 | 6.33 | 2.79 | 3.97 | -20.36 | 64.43 | -36.30 | 115.08 | 0.6151 | -778.2 | -735.2 | |
| 0.00 | 1.37 | 0.00 | 0.85 | -19.76 | 64.59 | -36.14 | 114.20 | 0.6108 | -729.0 | -576.6 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -19.94 | 64.50 | -36.23 | 114.45 | 0.6126 | -904.0 | -686.8 | |
| 1.20 | 1.62 | 0.75 | 1.02 | -20.09 | 64.07 | -36.66 | 114.51 | 0.6186 | -645.6 | -561.0 | |
| 0.00 | 1.71 | 0.00 | 1.08 | -20.33 | 63.53 | -37.20 | 114.66 | 0.6262 | -837.0 | -702.5 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -20.00 | 63.62 | -37.11 | 114.19 | 0.6238 | -753.0 | -662.7 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -19.73 | 63.65 | -37.07 | 113.78 | 0.6224 | -727.0 | -628.7 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -19.84 | 63.47 | -37.26 | 113.87 | 0.6251 | -601.0 | -471.3 | |
| 0.00 | 2.56 | 0.00 | 1.64 | -20.47 | 62.81 | -37.92 | 114.59 | 0.6355 | -610.0 | -657.9 | |
| 1.37 | 3.76 | 0.87 | 2.41 | -20.13 | 62.79 | -37.94 | 114.06 | 0.6345 | -764.8 | -682.2 | |
| 3.76 | 4.27 | 2.42 | 2.75 | -20.41 | 62.42 | -38.31 | 114.35 | 0.6400 | -612.8 | -540.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
