SDO HMI 2011-02-09 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.56 | 48.74 | 8.61 | 33.44 | 20.10 | 65.44 | -35.29 | 51.66 | 0.6937 | 4.1 | -132.5 | |
|
previous
or next observation for the same group /

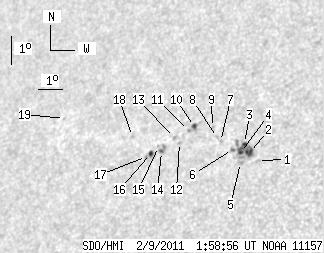

back to the solar disc SDO HMI 2011-02-09 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.14 | 19.52 | 67.32 | -33.41 | 50.93 | 0.6709 | -754.0 | -677.8 | |
| 4.10 | 20.95 | 2.75 | 14.10 | 19.80 | 66.95 | -33.78 | 50.88 | 0.6767 | -922.6 | -683.2 | |
| 1.62 | -2.00 | 1.10 | -2.00 | 20.12 | 66.68 | -34.05 | 50.71 | 0.6817 | -725.9 | 999999 | |
| 1.54 | -2.00 | 1.04 | -2.00 | 19.83 | 66.60 | -34.13 | 51.13 | 0.6803 | -797.2 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.61 | 19.49 | 66.68 | -34.05 | 51.47 | 0.6771 | -797.0 | -625.9 | |
| 0.00 | 1.88 | 0.00 | 1.27 | 19.95 | 66.26 | -34.47 | 51.24 | 0.6845 | -660.0 | -527.5 | |
| 0.00 | 1.54 | 0.00 | 1.05 | 20.25 | 65.72 | -35.00 | 51.30 | 0.6920 | -312.0 | -185.1 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 20.39 | 65.57 | -35.16 | 51.25 | 0.6945 | -333.0 | -191.7 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 20.74 | 65.28 | -35.44 | 51.05 | 0.6998 | -3.0 | -112.0 | |
| 2.14 | 4.70 | 1.49 | 3.28 | 20.82 | 64.56 | -36.17 | 51.49 | 0.7074 | 793.4 | 557.5 | |
| 0.00 | 1.20 | 0.00 | 0.84 | 20.71 | 64.35 | -36.37 | 51.78 | 0.7085 | 781.0 | 619.3 | |
| 0.00 | 1.37 | 0.00 | 0.96 | 20.33 | 64.10 | -36.62 | 52.41 | 0.7084 | 690.0 | 546.0 | |
| 0.00 | 1.45 | 0.00 | 1.02 | 20.51 | 63.86 | -36.87 | 52.37 | 0.7120 | 750.0 | 677.3 | |
| 1.28 | 3.59 | 0.90 | 2.53 | 20.08 | 63.46 | -37.27 | 53.16 | 0.7130 | 900.7 | 833.3 | |
| 0.00 | 1.03 | 0.00 | 0.73 | 20.26 | 63.29 | -37.44 | 53.07 | 0.7158 | 329.0 | 450.0 | |
| 1.88 | 2.48 | 1.33 | 1.75 | 20.05 | 63.03 | -37.69 | 53.50 | 0.7169 | 583.2 | 558.6 | |
| 0.00 | 1.20 | 0.00 | 0.85 | 19.96 | 62.90 | -37.83 | 53.70 | 0.7177 | 642.0 | 589.8 | |
| 0.00 | 1.20 | 0.00 | 0.86 | 20.67 | 62.13 | -38.60 | 53.38 | 0.7297 | 695.0 | 590.2 | |
| 0.00 | 0.51 | 0.00 | 0.39 | 21.51 | 59.02 | -41.71 | 54.39 | 0.7636 | 458.0 | 392.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
