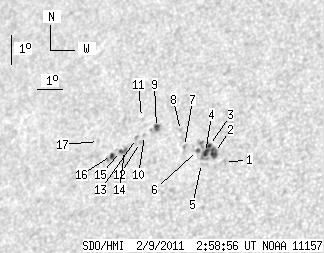

SDO HMI 2011-02-09 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.28 | 46.69 | 11.73 | 31.84 | 20.13 | 65.37 | -34.81 | 51.26 | 0.6891 | -41.4 | 0.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-09 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.02 | 19.47 | 67.45 | -32.73 | 50.43 | 0.6637 | -741.0 | -603.6 | |
| 5.13 | 19.84 | 3.42 | 13.26 | 19.83 | 67.00 | -33.19 | 50.37 | 0.6710 | -903.5 | -629.1 | |
| 1.80 | -2.00 | 1.20 | -2.00 | 20.07 | 66.75 | -33.43 | 50.27 | 0.6753 | -688.4 | 999999 | |
| 2.74 | -2.00 | 1.83 | -2.00 | 19.85 | 66.65 | -33.53 | 50.62 | 0.6746 | -902.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 19.49 | 66.58 | -33.60 | 51.11 | 0.6726 | -584.0 | -485.7 | |
| 1.28 | 1.62 | 0.86 | 1.09 | 19.94 | 66.33 | -33.86 | 50.77 | 0.6784 | -634.9 | -564.0 | |
| 0.00 | 1.11 | 0.00 | 0.75 | 20.10 | 65.79 | -34.39 | 51.00 | 0.6850 | -308.0 | -387.2 | |
| 0.00 | 1.37 | 0.00 | 0.94 | 20.65 | 65.49 | -34.69 | 50.57 | 0.6918 | -70.0 | -122.2 | |
| 2.57 | 5.73 | 1.78 | 3.97 | 20.82 | 64.52 | -35.66 | 51.12 | 0.7024 | 830.8 | 642.6 | |
| 0.00 | 1.20 | 0.00 | 0.83 | 20.58 | 64.11 | -36.07 | 51.70 | 0.7047 | 283.0 | 347.5 | |
| 0.00 | 0.34 | 0.00 | 0.24 | 21.20 | 63.82 | -36.36 | 51.18 | 0.7117 | 264.0 | 380.2 | |
| 0.00 | 1.71 | 0.00 | 1.19 | 20.36 | 64.02 | -36.16 | 52.03 | 0.7041 | 865.0 | 663.7 | |
| 0.00 | 1.80 | 0.00 | 1.25 | 20.50 | 63.82 | -36.36 | 52.00 | 0.7070 | 711.0 | 608.5 | |
| 0.34 | 3.68 | 0.24 | 2.57 | 20.14 | 63.45 | -36.73 | 52.71 | 0.7081 | 940.8 | 711.3 | |
| 1.37 | -14.00 | 0.96 | -14.00 | 20.11 | 63.30 | -36.88 | 52.84 | 0.7095 | 771.3 | 999999 | |
| 2.05 | 4.53 | 1.44 | 3.19 | 20.01 | 62.97 | -37.21 | 53.20 | 0.7120 | 656.8 | 588.0 | |
| 0.00 | 1.28 | 0.00 | 0.91 | 20.52 | 62.31 | -37.87 | 53.06 | 0.7217 | 461.0 | 444.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
