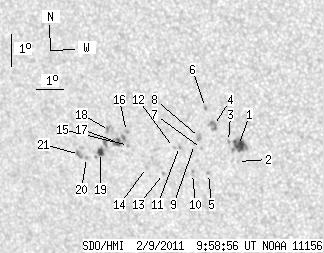

SDO HMI 2011-02-09 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.67 | 70.47 | 9.81 | 41.64 | -20.32 | 65.40 | -30.96 | 117.80 | 0.5470 | 98.1 | -47.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-09 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.72 | 14.46 | 5.02 | 8.32 | -20.48 | 68.21 | -28.15 | 119.85 | 0.5117 | 938.1 | 738.3 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -20.96 | 68.08 | -28.29 | 120.61 | 0.5163 | 691.0 | 595.2 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -20.34 | 67.88 | -28.48 | 119.36 | 0.5151 | 670.0 | 483.1 | |
| 0.00 | 5.39 | 0.00 | 3.12 | -19.83 | 67.44 | -28.92 | 118.14 | 0.5180 | 807.0 | 765.7 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -21.27 | 66.96 | -29.40 | 120.37 | 0.5324 | 828.0 | 566.6 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -19.27 | 67.27 | -29.10 | 117.01 | 0.5173 | 854.0 | 678.5 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -20.50 | 66.87 | -29.49 | 118.96 | 0.5291 | -526.0 | -351.8 | |
| 0.00 | 3.25 | 0.00 | 1.89 | -20.16 | 66.87 | -29.49 | 118.36 | 0.5273 | 980.0 | 732.6 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -20.37 | 66.65 | -29.72 | 118.57 | 0.5313 | 624.0 | 556.2 | |
| 0.00 | 2.22 | 0.00 | 1.31 | -21.24 | 66.38 | -29.98 | 119.92 | 0.5396 | 26.0 | 181.5 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -20.40 | 66.09 | -30.27 | 118.27 | 0.5387 | 784.0 | 691.0 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -20.42 | 65.87 | -30.50 | 118.17 | 0.5416 | 495.0 | 394.0 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -21.18 | 65.32 | -31.04 | 119.14 | 0.5526 | 511.0 | 313.3 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -20.97 | 64.74 | -31.62 | 118.43 | 0.5589 | -833.0 | -470.2 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -20.26 | 64.24 | -32.13 | 116.95 | 0.5618 | -780.0 | -787.4 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -19.83 | 64.26 | -32.10 | 116.24 | 0.5595 | -896.0 | -751.0 | |
| 4.19 | 10.35 | 2.51 | 6.20 | -20.15 | 63.85 | -32.51 | 116.55 | 0.5662 | -842.1 | -746.3 | |
| 0.00 | 4.96 | 0.00 | 2.98 | -19.77 | 63.64 | -32.72 | 115.80 | 0.5672 | -594.0 | -604.3 | |
| 3.76 | 11.03 | 2.28 | 6.67 | -20.41 | 63.15 | -33.21 | 116.62 | 0.5764 | -897.0 | -639.3 | |
| 0.00 | 1.28 | 0.00 | 0.78 | -20.53 | 62.59 | -33.77 | 116.53 | 0.5841 | -771.0 | -593.7 | |
| 0.00 | 3.93 | 0.00 | 2.40 | -20.42 | 62.35 | -34.01 | 116.23 | 0.5866 | -691.0 | -562.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
