SDO HMI 2011-02-09 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.05 | 62.01 | 16.10 | 39.94 | 20.06 | 65.30 | -29.97 | 47.24 | 0.6410 | -110.8 | 22.5 | |
|
previous
or next observation for the same group /

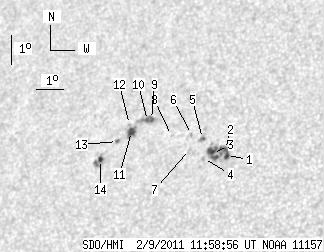

back to the solar disc SDO HMI 2011-02-09 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.39 | 25.66 | 1.50 | 16.16 | 19.54 | 67.36 | -27.91 | 45.93 | 0.6162 | -929.6 | -710.9 | |
| 1.88 | -1.00 | 1.18 | -1.00 | 19.74 | 67.29 | -27.98 | 45.76 | 0.6188 | -774.6 | 999999 | |
| 8.81 | -1.00 | 5.56 | -1.00 | 19.63 | 66.84 | -28.43 | 46.33 | 0.6222 | -783.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 19.49 | 66.55 | -28.72 | 46.80 | 0.6238 | -603.0 | -546.3 | |
| 1.20 | 3.16 | 0.76 | 2.02 | 20.15 | 66.38 | -28.89 | 46.14 | 0.6313 | -590.9 | -523.0 | |
| 0.00 | 1.20 | 0.00 | 0.77 | 20.31 | 65.95 | -29.32 | 46.36 | 0.6368 | -502.0 | -412.5 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 19.81 | 65.98 | -29.29 | 46.94 | 0.6323 | -451.0 | -409.6 | |
| 0.00 | 0.68 | 0.00 | 0.44 | 20.32 | 65.22 | -30.05 | 47.03 | 0.6440 | -408.0 | -314.9 | |
| 2.05 | 10.61 | 1.35 | 6.97 | 20.90 | 64.36 | -30.91 | 47.12 | 0.6573 | 797.2 | 639.6 | |
| 1.11 | -9.00 | 0.73 | -9.00 | 20.88 | 64.21 | -31.06 | 47.28 | 0.6584 | 879.5 | 999999 | |
| 4.19 | 7.53 | 2.76 | 4.95 | 20.55 | 63.70 | -31.57 | 48.13 | 0.6607 | 973.8 | 794.2 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 20.79 | 63.57 | -31.70 | 47.95 | 0.6639 | 561.0 | 485.0 | |
| 1.28 | 1.62 | 0.85 | 1.07 | 20.25 | 63.25 | -32.02 | 48.88 | 0.6627 | 703.1 | 587.2 | |
| 2.14 | 7.95 | 1.41 | 5.25 | 19.69 | 62.74 | -32.53 | 49.99 | 0.6634 | 834.5 | 689.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
