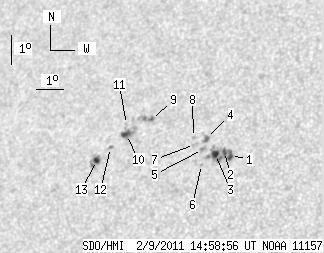

SDO HMI 2011-02-09 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.58 | 63.79 | 12.35 | 40.31 | 19.92 | 65.42 | -28.20 | 45.68 | 0.6226 | -85.2 | -52.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-09 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.51 | 25.31 | 2.16 | 15.67 | 19.50 | 67.49 | -26.13 | 44.13 | 0.5985 | -866.0 | -712.8 | |
| 2.05 | -1.00 | 1.27 | -1.00 | 19.64 | 67.25 | -26.37 | 44.21 | 0.6022 | -873.3 | 999999 | |
| 3.85 | -1.00 | 2.39 | -1.00 | 19.56 | 66.95 | -26.67 | 44.63 | 0.6043 | -856.7 | 999999 | |
| 2.48 | 4.45 | 1.55 | 2.78 | 20.11 | 66.53 | -27.09 | 44.39 | 0.6135 | -618.7 | -520.7 | |
| 0.00 | 2.82 | 0.00 | 1.76 | 19.75 | 66.45 | -27.16 | 44.91 | 0.6109 | -686.0 | -527.7 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 19.26 | 66.51 | -27.11 | 45.46 | 0.6058 | -729.0 | -580.8 | |
| 0.00 | 1.71 | 0.00 | 1.07 | 19.94 | 66.14 | -27.48 | 45.01 | 0.6157 | -477.0 | -409.3 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 20.17 | 66.06 | -27.56 | 44.81 | 0.6186 | -530.0 | -385.7 | |
| 0.60 | 5.98 | 0.39 | 3.86 | 20.86 | 64.41 | -29.21 | 45.60 | 0.6406 | 876.4 | 737.9 | |
| 4.27 | 10.17 | 2.76 | 6.57 | 20.41 | 63.59 | -30.03 | 46.90 | 0.6446 | 906.3 | 537.3 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 20.75 | 63.52 | -30.10 | 46.57 | 0.6482 | 530.0 | 461.4 | |
| 0.00 | 1.80 | 0.00 | 1.16 | 20.02 | 63.09 | -30.53 | 47.84 | 0.6462 | 870.0 | 705.0 | |
| 2.82 | 8.38 | 1.83 | 5.43 | 19.61 | 62.67 | -30.95 | 48.71 | 0.6471 | 895.7 | 674.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
