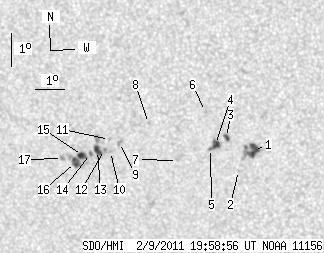

SDO HMI 2011-02-09 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.42 | 72.06 | 18.75 | 40.51 | -20.30 | 65.49 | -25.37 | 121.88 | 0.4743 | -0.3 | -150.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-09 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.83 | 18.04 | 5.39 | 9.90 | -20.44 | 68.90 | -21.96 | 125.27 | 0.4310 | 1029.8 | 706.0 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -21.03 | 68.29 | -22.56 | 125.78 | 0.4434 | 611.0 | 476.6 | |
| 2.22 | 3.08 | 1.22 | 1.69 | -20.01 | 68.04 | -22.82 | 123.50 | 0.4388 | 862.0 | 762.4 | |
| 5.04 | 7.78 | 2.79 | 4.30 | -20.21 | 67.64 | -23.22 | 123.48 | 0.4455 | 895.6 | 630.6 | |
| 0.26 | -4.00 | 0.14 | -4.00 | -20.32 | 67.45 | -23.41 | 123.52 | 0.4488 | 696.7 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -19.19 | 67.45 | -23.41 | 121.25 | 0.4407 | 751.0 | 494.7 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -20.63 | 66.25 | -24.61 | 123.00 | 0.4665 | 742.0 | 609.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -19.47 | 65.44 | -25.41 | 120.03 | 0.4693 | 668.0 | 407.7 | |
| 0.00 | 2.91 | 0.00 | 1.65 | -19.99 | 64.34 | -26.52 | 120.15 | 0.4873 | -969.0 | -830.3 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -20.25 | 63.97 | -26.89 | 120.35 | 0.4937 | -877.0 | -726.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -19.89 | 64.01 | -26.85 | 119.69 | 0.4910 | -932.0 | -796.9 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -20.18 | 63.77 | -27.09 | 120.06 | 0.4958 | -971.0 | -861.1 | |
| 4.79 | 10.17 | 2.73 | 5.80 | -20.20 | 63.52 | -27.34 | 119.90 | 0.4992 | -966.6 | -689.0 | |
| 1.45 | 2.05 | 0.83 | 1.17 | -20.28 | 63.26 | -27.60 | 119.85 | 0.5031 | -851.3 | -636.0 | |
| 4.27 | 18.80 | 2.45 | 10.81 | -20.32 | 62.96 | -27.90 | 119.72 | 0.5072 | -981.4 | -649.7 | |
| 5.56 | -15.00 | 3.20 | -15.00 | -20.52 | 62.67 | -28.19 | 119.87 | 0.5122 | -812.8 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.04 | -20.38 | 62.24 | -28.62 | 119.30 | 0.5170 | -577.0 | -524.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
