SDO HMI 2011-02-09 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.17 | 54.97 | 10.49 | 33.72 | 19.71 | 65.67 | -25.19 | 42.75 | 0.5917 | -250.0 | -124.7 | |
|
previous
or next observation for the same group /

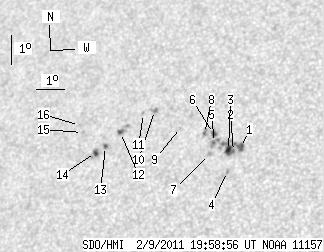

back to the solar disc SDO HMI 2011-02-09 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.44 | 19.83 | 2.67 | 11.96 | 19.42 | 67.68 | -23.18 | 40.85 | 0.5698 | -830.8 | -720.3 | |
| 0.26 | -1.00 | 0.15 | -1.00 | 19.30 | 67.46 | -23.40 | 41.26 | 0.5706 | -1171.3 | 999999 | |
| 4.44 | -1.00 | 2.68 | -1.00 | 19.35 | 67.28 | -23.58 | 41.42 | 0.5727 | -992.4 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 18.66 | 67.35 | -23.51 | 42.19 | 0.5649 | -775.0 | -681.2 | |
| 0.00 | 4.62 | 0.00 | 2.80 | 19.63 | 66.76 | -24.10 | 41.69 | 0.5806 | -757.0 | -647.6 | |
| 2.65 | 4.02 | 1.61 | 2.45 | 19.93 | 66.67 | -24.19 | 41.42 | 0.5844 | -671.3 | -457.3 | |
| 0.00 | 2.05 | 0.00 | 1.24 | 19.25 | 66.65 | -24.21 | 42.29 | 0.5777 | -728.0 | -619.6 | |
| 0.34 | 2.65 | 0.21 | 1.62 | 19.95 | 66.36 | -24.50 | 41.76 | 0.5875 | -622.8 | -478.5 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 20.19 | 65.48 | -25.38 | 42.45 | 0.5982 | -447.0 | -396.8 | |
| 0.00 | 2.91 | 0.00 | 1.82 | 20.81 | 64.46 | -26.40 | 42.82 | 0.6138 | 956.0 | 774.6 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 20.73 | 64.08 | -26.78 | 43.31 | 0.6165 | 667.0 | 659.9 | |
| 1.62 | 6.58 | 1.02 | 4.14 | 20.14 | 63.38 | -27.48 | 44.74 | 0.6177 | 827.3 | 675.4 | |
| 1.37 | 1.71 | 0.86 | 1.07 | 19.71 | 62.93 | -27.93 | 45.73 | 0.6181 | 858.8 | 797.5 | |
| 2.05 | 5.21 | 1.29 | 3.28 | 19.53 | 62.61 | -28.25 | 46.27 | 0.6197 | 921.0 | 651.6 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 20.22 | 62.00 | -28.86 | 46.01 | 0.6317 | 659.0 | 622.6 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 20.46 | 61.85 | -29.01 | 45.87 | 0.6354 | 592.0 | 488.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
