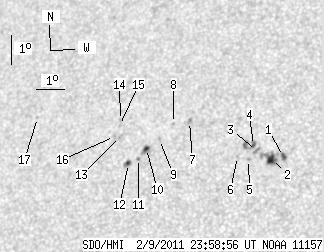

SDO HMI 2011-02-09 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.91 | 52.50 | 7.72 | 31.68 | 19.70 | 65.54 | -23.12 | 40.29 | 0.5725 | 53.1 | -98.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-09 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.22 | 3.59 | 1.31 | 2.12 | 19.36 | 67.92 | -20.73 | 37.81 | 0.5470 | -837.3 | -730.5 | |
| 5.90 | 15.73 | 3.49 | 9.32 | 19.28 | 67.53 | -21.13 | 38.43 | 0.5496 | -1000.4 | -697.1 | |
| 0.00 | 3.08 | 0.00 | 1.83 | 19.60 | 66.98 | -21.68 | 38.75 | 0.5581 | -815.0 | -669.8 | |
| 1.20 | 7.52 | 0.71 | 4.50 | 19.77 | 66.85 | -21.80 | 38.71 | 0.5611 | -724.1 | -576.0 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 19.32 | 66.75 | -21.91 | 39.39 | 0.5571 | -759.0 | -624.8 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 19.43 | 66.36 | -22.30 | 39.73 | 0.5619 | -627.0 | -486.4 | |
| 0.00 | 2.48 | 0.00 | 1.52 | 20.68 | 64.52 | -24.14 | 40.46 | 0.5918 | 951.0 | 725.1 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 20.64 | 63.97 | -24.69 | 41.13 | 0.5964 | 791.0 | 633.3 | |
| 0.00 | 1.37 | 0.00 | 0.84 | 20.13 | 63.57 | -25.09 | 42.19 | 0.5951 | 761.0 | 622.9 | |
| 2.31 | 5.04 | 1.42 | 3.10 | 19.85 | 63.17 | -25.49 | 42.97 | 0.5962 | 697.5 | 608.5 | |
| 0.00 | 1.37 | 0.00 | 0.84 | 19.54 | 62.94 | -25.72 | 43.60 | 0.5953 | 1020.0 | 825.2 | |
| 1.28 | 3.59 | 0.79 | 2.21 | 19.39 | 62.62 | -26.04 | 44.13 | 0.5970 | 830.4 | 757.6 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 20.30 | 62.17 | -26.48 | 43.50 | 0.6099 | 766.0 | 574.9 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 20.84 | 62.07 | -26.59 | 42.96 | 0.6160 | 626.0 | 506.2 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 20.67 | 62.07 | -26.59 | 43.16 | 0.6144 | 611.0 | 393.2 | |
| 0.00 | 1.37 | 0.00 | 0.86 | 20.32 | 61.96 | -26.70 | 43.71 | 0.6121 | 716.0 | 601.1 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 21.11 | 59.03 | -29.63 | 45.66 | 0.6472 | 463.0 | 354.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
