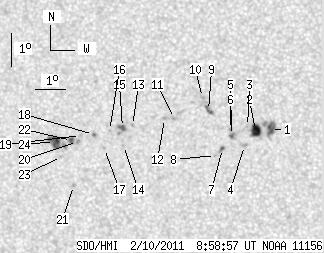

SDO HMI 2011-02-10 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.07 | 76.25 | 16.58 | 40.70 | -20.28 | 66.35 | -17.39 | 131.18 | 0.3724 | -66.0 | 27.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-10 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.31 | 11.55 | 2.78 | 6.06 | -20.23 | 69.76 | -13.98 | 136.52 | 0.3309 | 1047.1 | 888.3 | |
| 8.64 | 10.18 | 4.54 | 5.35 | -20.25 | 69.27 | -14.47 | 135.62 | 0.3367 | 1101.9 | 735.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.12 | 69.02 | -14.72 | 134.87 | 0.3381 | 710.0 | 617.5 | |
| 0.00 | 2.22 | 0.00 | 1.17 | -20.69 | 68.87 | -14.87 | 135.84 | 0.3462 | 815.0 | 680.4 | |
| 1.37 | 3.59 | 0.72 | 1.90 | -20.38 | 68.48 | -15.27 | 134.45 | 0.3473 | 797.2 | 733.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.19 | 68.46 | -15.28 | 134.02 | 0.3455 | 780.0 | 638.7 | |
| 1.11 | 3.08 | 0.59 | 1.63 | -20.76 | 68.14 | -15.60 | 134.70 | 0.3553 | 664.0 | 614.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.97 | 67.89 | -15.85 | 134.70 | 0.3605 | 594.0 | 444.6 | |
| 0.00 | 3.94 | 0.00 | 2.08 | -19.60 | 67.80 | -15.94 | 131.54 | 0.3472 | 1093.0 | 953.1 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -19.20 | 67.65 | -16.09 | 130.36 | 0.3451 | 905.0 | 690.6 | |
| 0.00 | 2.14 | 0.00 | 1.14 | -19.80 | 66.67 | -17.08 | 130.19 | 0.3632 | -517.0 | -482.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.79 | 66.34 | -17.40 | 129.66 | 0.3672 | -968.0 | -653.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -19.97 | 65.26 | -18.48 | 128.50 | 0.3824 | -943.0 | -709.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -20.57 | 64.89 | -18.86 | 129.26 | 0.3925 | -733.0 | -678.3 | |
| 1.63 | 5.48 | 0.87 | 2.94 | -20.02 | 64.92 | -18.82 | 128.14 | 0.3871 | -1111.0 | -811.2 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -20.09 | 64.48 | -19.26 | 127.71 | 0.3934 | -833.0 | -677.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -20.64 | 64.24 | -19.50 | 128.54 | 0.4012 | -783.0 | -610.8 | |
| 1.20 | 1.37 | 0.65 | 0.74 | -20.20 | 63.93 | -19.81 | 127.22 | 0.4012 | -954.8 | -810.5 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -20.21 | 63.49 | -20.25 | 126.70 | 0.4069 | -901.0 | -722.1 | |
| 0.00 | 2.14 | 0.00 | 1.16 | -20.39 | 63.37 | -20.38 | 126.92 | 0.4100 | -1021.0 | -817.7 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -21.72 | 63.04 | -20.70 | 129.21 | 0.4257 | -829.0 | -595.3 | |
| 2.91 | 3.17 | 1.58 | 1.72 | -20.35 | 63.17 | -20.57 | 126.61 | 0.4122 | -995.8 | -805.7 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -20.82 | 62.76 | -20.98 | 127.09 | 0.4213 | -657.0 | -507.0 | |
| 8.90 | 14.38 | 4.85 | 7.83 | -20.36 | 62.59 | -21.15 | 125.94 | 0.4196 | -944.6 | -747.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
