SDO HMI 2011-02-10 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.42 | 25.68 | 3.71 | 14.90 | 19.56 | 65.94 | -17.26 | 32.45 | 0.5204 | -20.7 | -256.4 | |
|
previous
or next observation for the same group /

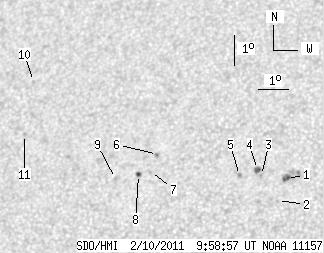

back to the solar disc SDO HMI 2011-02-10 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.17 | 11.21 | 1.81 | 6.40 | 19.19 | 68.08 | -15.12 | 29.75 | 0.4986 | -909.6 | -718.4 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 18.47 | 67.85 | -15.34 | 30.88 | 0.4911 | -822.0 | -596.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 19.31 | 67.25 | -15.95 | 30.93 | 0.5064 | -516.0 | -527.6 | |
| 1.54 | 3.34 | 0.89 | 1.92 | 19.51 | 67.10 | -16.10 | 30.95 | 0.5102 | -857.3 | -652.7 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 19.34 | 66.53 | -16.67 | 32.03 | 0.5124 | -821.0 | -667.8 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 20.14 | 63.72 | -19.47 | 35.21 | 0.5450 | 851.0 | 755.3 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 19.58 | 63.56 | -19.64 | 36.06 | 0.5400 | 750.0 | 737.6 | |
| 1.71 | 2.31 | 1.01 | 1.36 | 19.50 | 63.17 | -20.03 | 36.69 | 0.5424 | 698.9 | 653.7 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 19.40 | 62.41 | -20.78 | 37.82 | 0.5480 | 783.0 | 664.7 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 22.79 | 59.05 | -24.15 | 38.08 | 0.6138 | 613.0 | 444.9 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 21.01 | 59.06 | -24.14 | 40.06 | 0.5954 | 623.0 | 476.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
