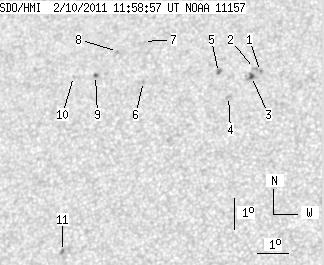

SDO HMI 2011-02-10 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.85 | 19.43 | 2.20 | 11.10 | 18.87 | 66.38 | -15.72 | 31.03 | 0.5004 | -292.3 | -426.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-10 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.73 | 19.37 | 68.54 | -13.56 | 26.97 | 0.4897 | -844.0 | -773.7 | |
| 0.00 | 1.80 | 0.00 | 1.02 | 19.47 | 68.34 | -13.76 | 27.21 | 0.4925 | -609.0 | -565.4 | |
| 2.14 | 4.96 | 1.21 | 2.82 | 19.21 | 68.27 | -13.83 | 27.59 | 0.4895 | -987.5 | -712.2 | |
| 0.00 | 1.88 | 0.00 | 1.07 | 18.58 | 67.58 | -14.52 | 29.40 | 0.4861 | -791.0 | -600.0 | |
| 0.43 | 2.74 | 0.24 | 1.56 | 19.38 | 67.18 | -14.92 | 29.22 | 0.4995 | -944.6 | -735.9 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 19.16 | 64.76 | -17.34 | 33.25 | 0.5157 | -629.0 | -460.3 | |
| 0.00 | 0.51 | 0.00 | 0.30 | 20.49 | 64.61 | -17.49 | 32.02 | 0.5331 | 608.0 | 589.3 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 20.19 | 63.78 | -18.32 | 33.54 | 0.5361 | 883.0 | 740.2 | |
| 1.28 | 1.63 | 0.75 | 0.95 | 19.42 | 63.14 | -18.96 | 35.30 | 0.5323 | 798.1 | 860.2 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 19.42 | 62.41 | -19.69 | 36.33 | 0.5385 | 760.0 | 662.4 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 13.78 | 62.65 | -19.45 | 43.42 | 0.4724 | -884.0 | -670.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
