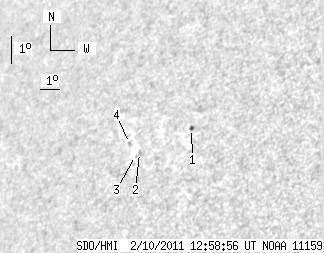

SDO HMI 2011-02-10 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 4.36 | 1.01 | 3.81 | 19.54 | 31.84 | -49.71 | 60.77 | 0.8258 | 317.9 | 413.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-10 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 1.54 | 1.01 | 1.30 | 19.85 | 33.50 | -48.05 | 59.67 | 0.8128 | -329.9 | -303.5 | |
| 0.00 | 1.45 | 0.00 | 1.28 | 19.27 | 31.23 | -50.33 | 61.35 | 0.8301 | 636.0 | 535.1 | |
| 0.00 | 0.43 | 0.00 | 0.38 | 19.19 | 31.06 | -50.49 | 61.51 | 0.8312 | 466.0 | 471.2 | |
| 0.00 | 0.94 | 0.00 | 0.85 | 19.63 | 30.58 | -50.98 | 61.24 | 0.8369 | 506.0 | 447.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
