SDO HMI 2011-02-10 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.97 | 104.83 | 16.67 | 54.63 | -20.16 | 67.28 | -12.07 | 140.84 | 0.3105 | 34.6 | 109.4 | |
|
previous
or next observation for the same group /

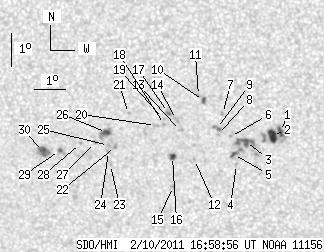

back to the solar disc SDO HMI 2011-02-10 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.33 | 23.17 | 1.72 | 11.96 | -20.01 | 70.27 | -9.07 | 147.58 | 0.2777 | 1104.3 | 763.3 | |
| 8.12 | -1.00 | 4.19 | -1.00 | -20.12 | 70.01 | -9.34 | 147.09 | 0.2817 | 1192.0 | 999999 | |
| 4.70 | 16.16 | 2.43 | 8.37 | -20.29 | 69.14 | -10.21 | 145.12 | 0.2920 | 955.7 | 800.5 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -20.99 | 68.80 | -10.55 | 145.68 | 0.3045 | 687.0 | 514.4 | |
| 1.88 | 5.64 | 0.98 | 2.93 | -20.68 | 68.73 | -10.62 | 144.88 | 0.3011 | 727.6 | 728.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -20.13 | 68.67 | -10.68 | 143.59 | 0.2945 | 841.0 | 715.5 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -19.43 | 68.46 | -10.89 | 141.52 | 0.2875 | 879.0 | 749.2 | |
| 0.00 | 0.68 | 0.00 | 0.35 | -20.06 | 68.26 | -11.09 | 142.43 | 0.2977 | 657.0 | 604.1 | |
| 0.00 | 3.85 | 0.00 | 1.99 | -19.88 | 68.24 | -11.11 | 141.98 | 0.2956 | 805.0 | 744.7 | |
| 0.86 | 2.31 | 0.44 | 1.19 | -19.02 | 67.88 | -11.47 | 139.15 | 0.2886 | 1073.8 | 861.0 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -18.86 | 67.73 | -11.61 | 138.43 | 0.2884 | 1004.0 | 794.7 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -20.80 | 67.46 | -11.89 | 142.15 | 0.3152 | -813.0 | -611.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -19.91 | 67.08 | -12.27 | 139.37 | 0.3082 | -882.0 | -531.5 | |
| 0.00 | 2.22 | 0.00 | 1.16 | -19.58 | 66.98 | -12.37 | 138.37 | 0.3053 | -681.0 | -540.5 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -21.61 | 66.71 | -12.64 | 142.15 | 0.3330 | 933.0 | 677.6 | |
| 2.82 | 3.85 | 1.48 | 2.01 | -20.70 | 66.76 | -12.59 | 140.37 | 0.3212 | 856.3 | 633.8 | |
| 0.00 | 2.74 | 0.00 | 1.42 | -19.36 | 66.74 | -12.61 | 137.34 | 0.3053 | -905.0 | -811.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -19.72 | 66.58 | -12.77 | 137.84 | 0.3113 | -872.0 | -634.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -19.53 | 66.56 | -12.79 | 137.38 | 0.3094 | -839.0 | -668.0 | |
| 0.00 | 2.57 | 0.00 | 1.34 | -19.74 | 66.29 | -13.06 | 137.27 | 0.3149 | -832.0 | -644.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -19.35 | 65.45 | -13.90 | 134.67 | 0.3201 | -816.0 | -528.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -20.34 | 64.94 | -14.41 | 135.94 | 0.3370 | -907.0 | -700.9 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -20.89 | 64.72 | -14.63 | 136.70 | 0.3456 | -905.0 | -663.1 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.49 | 64.70 | -14.65 | 135.80 | 0.3414 | -673.0 | -530.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -20.31 | 64.71 | -14.64 | 135.43 | 0.3392 | -864.0 | -712.1 | |
| 3.33 | 7.44 | 1.75 | 3.91 | -19.91 | 64.69 | -14.66 | 134.50 | 0.3352 | -1104.9 | -868.2 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -20.21 | 64.30 | -15.05 | 134.45 | 0.3429 | -856.0 | -643.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.22 | 63.81 | -15.54 | 133.62 | 0.3488 | -885.0 | -656.1 | |
| 1.80 | 2.82 | 0.95 | 1.50 | -20.41 | 63.10 | -16.25 | 132.84 | 0.3592 | -972.7 | -720.2 | |
| 5.13 | 10.00 | 2.73 | 5.32 | -20.43 | 62.54 | -16.81 | 131.96 | 0.3661 | -960.3 | -845.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
