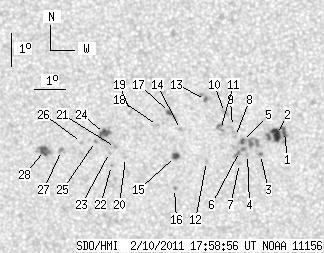

SDO HMI 2011-02-10 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.10 | 108.02 | 15.68 | 56.19 | -20.14 | 67.26 | -11.54 | 142.04 | 0.3047 | 10.2 | 196.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-10 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.08 | 23.09 | 1.58 | 11.89 | -20.02 | 70.36 | -8.44 | 149.43 | 0.2722 | 1044.3 | 789.6 | |
| 7.95 | -1.00 | 4.10 | -1.00 | -20.11 | 70.10 | -8.70 | 148.85 | 0.2757 | 1217.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -20.71 | 69.55 | -9.24 | 148.51 | 0.2889 | 919.0 | 784.9 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -20.70 | 69.14 | -9.66 | 147.38 | 0.2924 | 494.0 | 449.5 | |
| 1.11 | 11.03 | 0.57 | 5.70 | -20.30 | 69.00 | -9.79 | 146.23 | 0.2882 | 986.6 | 863.4 | |
| 0.00 | 5.13 | 0.00 | 2.66 | -20.60 | 68.89 | -9.91 | 146.54 | 0.2934 | 846.0 | 792.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -20.97 | 68.86 | -9.93 | 147.19 | 0.2986 | 677.0 | 523.3 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -20.15 | 68.79 | -10.01 | 145.34 | 0.2881 | 905.0 | 554.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -19.84 | 68.71 | -10.08 | 144.49 | 0.2848 | 470.0 | 570.1 | |
| 0.00 | 2.74 | 0.00 | 1.41 | -19.41 | 68.49 | -10.31 | 142.94 | 0.2814 | 879.0 | 711.9 | |
| 0.00 | 5.81 | 0.00 | 3.01 | -19.92 | 68.33 | -10.47 | 143.67 | 0.2897 | 923.0 | 698.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -20.89 | 67.81 | -10.99 | 144.41 | 0.3074 | -971.0 | -632.9 | |
| 1.71 | 4.79 | 0.88 | 2.47 | -19.00 | 67.91 | -10.89 | 140.52 | 0.2822 | 921.3 | 613.4 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -19.90 | 67.05 | -11.75 | 140.50 | 0.3024 | -884.0 | -623.5 | |
| 3.08 | 4.28 | 1.61 | 2.23 | -20.71 | 66.82 | -11.98 | 141.76 | 0.3149 | 909.6 | 682.9 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -21.69 | 66.71 | -12.09 | 143.48 | 0.3284 | 811.0 | 674.5 | |
| 1.97 | 4.70 | 1.02 | 2.44 | -19.37 | 66.73 | -12.06 | 138.59 | 0.2994 | -968.3 | -766.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -19.76 | 66.32 | -12.48 | 138.55 | 0.3086 | -907.0 | -660.2 | |
| 0.00 | 2.57 | 0.00 | 1.34 | -19.31 | 65.48 | -13.31 | 135.75 | 0.3128 | -446.0 | -355.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -20.71 | 65.20 | -13.60 | 138.30 | 0.3320 | -542.0 | -427.7 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -20.39 | 64.90 | -13.89 | 137.03 | 0.3317 | -968.0 | -757.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.94 | 64.72 | -14.07 | 137.85 | 0.3399 | -946.0 | -757.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -20.54 | 64.70 | -14.10 | 136.95 | 0.3357 | -702.0 | -615.4 | |
| 5.04 | 10.18 | 2.65 | 5.34 | -19.96 | 64.59 | -14.21 | 135.45 | 0.3304 | -1020.7 | -773.6 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -20.19 | 64.27 | -14.52 | 135.38 | 0.3366 | -719.0 | -550.9 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -20.21 | 63.81 | -14.98 | 134.58 | 0.3421 | -917.0 | -629.1 | |
| 0.00 | 2.74 | 0.00 | 1.45 | -20.43 | 63.14 | -15.66 | 133.87 | 0.3524 | -1124.0 | -845.1 | |
| 6.16 | 10.35 | 3.27 | 5.49 | -20.42 | 62.58 | -16.21 | 132.90 | 0.3588 | -984.5 | -759.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
