SDO HMI 2011-02-10 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.91 | 91.66 | 14.86 | 47.29 | -20.31 | 67.48 | -8.56 | 150.29 | 0.2795 | 275.9 | 120.6 | |
|
previous
or next observation for the same group /

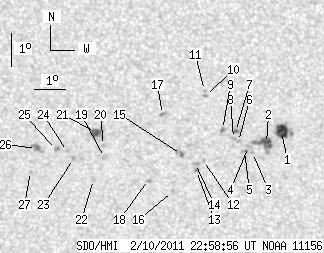

back to the solar disc SDO HMI 2011-02-10 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.55 | 17.53 | 5.91 | 8.97 | -20.06 | 70.36 | -5.68 | 158.25 | 0.2518 | 1137.5 | 758.2 | |
| 8.98 | 14.88 | 4.60 | 7.63 | -20.38 | 69.88 | -6.16 | 157.12 | 0.2601 | 1036.3 | 870.5 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -20.68 | 69.42 | -6.62 | 156.12 | 0.2677 | 788.0 | 543.9 | |
| 0.00 | 2.39 | 0.00 | 1.23 | -20.50 | 69.30 | -6.74 | 155.44 | 0.2657 | 885.0 | 675.0 | |
| 0.00 | 2.65 | 0.00 | 1.36 | -20.65 | 69.17 | -6.87 | 155.27 | 0.2689 | 772.0 | 580.0 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -20.34 | 68.99 | -7.05 | 154.19 | 0.2656 | 798.0 | 681.7 | |
| 1.28 | 4.53 | 0.66 | 2.32 | -20.04 | 68.91 | -7.13 | 153.39 | 0.2616 | 915.9 | 695.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -20.25 | 68.83 | -7.21 | 153.54 | 0.2653 | 768.0 | 604.2 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -19.97 | 68.50 | -7.54 | 151.98 | 0.2638 | 1027.0 | 865.9 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -18.93 | 68.01 | -8.03 | 148.34 | 0.2529 | 986.0 | 758.7 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -18.78 | 67.99 | -8.05 | 147.93 | 0.2509 | 814.0 | 729.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -20.91 | 67.85 | -8.19 | 151.75 | 0.2826 | -626.0 | -447.4 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -21.21 | 67.60 | -8.44 | 151.60 | 0.2889 | 963.0 | 845.3 | |
| 0.00 | 2.05 | 0.00 | 1.06 | -20.99 | 67.58 | -8.46 | 151.17 | 0.2859 | 824.0 | 772.6 | |
| 0.51 | 4.11 | 0.27 | 2.12 | -20.71 | 67.15 | -8.89 | 149.44 | 0.2855 | 964.8 | 708.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -21.84 | 66.79 | -9.25 | 150.52 | 0.3044 | 921.0 | 747.6 | |
| 0.00 | 2.48 | 0.00 | 1.28 | -19.48 | 66.62 | -9.42 | 145.45 | 0.2733 | -1088.0 | -836.1 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -21.46 | 66.04 | -10.00 | 147.91 | 0.3055 | -512.0 | -675.8 | |
| 0.00 | 2.99 | 0.00 | 1.56 | -20.75 | 64.68 | -11.36 | 143.20 | 0.3090 | -717.0 | -647.9 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -20.39 | 64.67 | -11.37 | 142.42 | 0.3043 | -948.0 | -718.9 | |
| 6.59 | 10.69 | 3.42 | 5.55 | -19.99 | 64.44 | -11.60 | 141.01 | 0.3016 | -1006.1 | -786.9 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -21.42 | 64.27 | -11.77 | 143.60 | 0.3215 | -682.0 | -538.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -20.76 | 63.67 | -12.37 | 140.94 | 0.3192 | -870.0 | -747.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -20.54 | 63.50 | -12.54 | 140.10 | 0.3184 | -923.0 | -753.5 | |
| 0.00 | 2.48 | 0.00 | 1.30 | -20.48 | 63.15 | -12.89 | 139.20 | 0.3213 | -846.0 | -721.4 | |
| 0.00 | 6.07 | 0.00 | 3.18 | -20.43 | 62.50 | -13.54 | 137.77 | 0.3278 | -1056.0 | -876.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -21.12 | 62.24 | -13.80 | 138.74 | 0.3388 | -712.0 | -594.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
