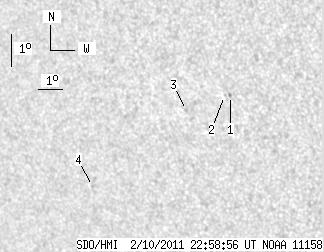

SDO HMI 2011-02-10 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.68 | 0.00 | 2.48 | -20.47 | 34.30 | -41.74 | 113.16 | 0.6795 | 135.2 | 78.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-10 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.82 | -19.40 | 37.49 | -38.55 | 112.62 | 0.6391 | 699.0 | 626.7 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -19.39 | 37.26 | -38.78 | 112.52 | 0.6419 | 619.0 | 515.6 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -19.73 | 35.60 | -40.44 | 112.49 | 0.6631 | -384.0 | -360.0 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -21.72 | 30.83 | -45.20 | 113.89 | 0.7234 | -393.0 | -329.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
