SDO HMI 2011-02-11 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 18.23 | 0.91 | 10.22 | 19.68 | 65.35 | -9.05 | 18.35 | 0.4698 | 325.2 | 41.8 | |
|
previous
or next observation for the same group /

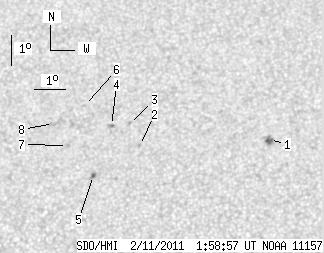

back to the solar disc SDO HMI 2011-02-11 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.65 | 0.00 | 3.13 | 19.54 | 69.33 | -5.06 | 10.68 | 0.4504 | -891.0 | -795.5 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 19.41 | 65.23 | -9.17 | 18.95 | 0.4647 | -773.0 | -542.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 20.14 | 64.87 | -9.53 | 19.09 | 0.4772 | 693.0 | 515.5 | |
| 0.00 | 2.31 | 0.00 | 1.30 | 20.09 | 64.29 | -10.10 | 20.19 | 0.4793 | 770.0 | 606.4 | |
| 1.63 | 2.31 | 0.91 | 1.29 | 18.45 | 63.82 | -10.57 | 22.40 | 0.4586 | 800.6 | 676.6 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 20.77 | 63.38 | -11.02 | 21.30 | 0.4940 | 654.0 | 521.5 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 19.46 | 62.93 | -11.47 | 23.18 | 0.4781 | 766.0 | 578.7 | |
| 0.00 | 3.59 | 0.00 | 2.04 | 20.20 | 62.42 | -11.97 | 23.44 | 0.4915 | 625.0 | 598.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
