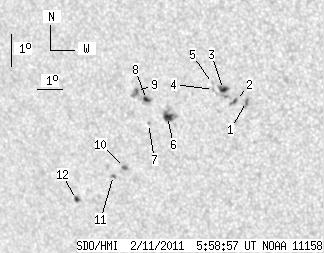

SDO HMI 2011-02-11 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.75 | 51.44 | 13.79 | 32.50 | -19.63 | 35.05 | -37.17 | 113.46 | 0.6222 | -67.0 | -123.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-11 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 3.34 | 0.99 | 2.03 | -19.41 | 38.13 | -34.08 | 114.40 | 0.5826 | 872.9 | 672.8 | |
| 1.46 | 3.08 | 0.89 | 1.88 | -19.36 | 37.73 | -34.49 | 114.13 | 0.5876 | 758.3 | 594.0 | |
| 3.68 | 7.87 | 2.26 | 4.83 | -19.00 | 37.35 | -34.86 | 113.38 | 0.5910 | 829.2 | 404.8 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -18.97 | 36.98 | -35.23 | 113.18 | 0.5957 | 410.0 | 366.2 | |
| 0.00 | 1.46 | 0.00 | 0.89 | -18.79 | 36.98 | -35.23 | 112.88 | 0.5950 | 563.0 | 393.5 | |
| 5.82 | 12.07 | 3.68 | 7.62 | -19.67 | 35.01 | -37.21 | 113.50 | 0.6232 | -723.3 | -449.0 | |
| 0.00 | 1.28 | 0.00 | 0.82 | -19.83 | 34.21 | -38.01 | 113.44 | 0.6337 | -677.0 | -500.9 | |
| 2.57 | 13.10 | 1.63 | 8.35 | -19.10 | 34.33 | -37.88 | 112.37 | 0.6298 | -885.1 | -578.6 | |
| 1.63 | -8.00 | 1.04 | -8.00 | -18.84 | 34.00 | -38.21 | 111.84 | 0.6330 | -839.6 | 999999 | |
| 1.88 | 3.51 | 1.23 | 2.29 | -21.09 | 32.85 | -39.36 | 114.84 | 0.6544 | 717.4 | 359.4 | |
| 1.03 | 1.88 | 0.68 | 1.24 | -21.30 | 32.33 | -39.88 | 114.96 | 0.6613 | 313.2 | 402.8 | |
| 2.05 | 2.91 | 1.39 | 1.97 | -21.91 | 30.56 | -41.65 | 115.23 | 0.6839 | -684.9 | -619.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
