SDO HMI 2011-02-11 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.28 | 19.36 | 0.71 | 10.81 | 20.24 | 64.95 | -5.08 | 10.34 | 0.4633 | 18.5 | 144.8 | |
|
previous
or next observation for the same group /

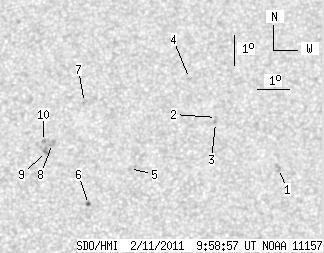

back to the solar disc SDO HMI 2011-02-11 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.17 | 0.00 | 1.75 | 19.43 | 69.80 | -0.23 | 0.49 | 0.4413 | -654.0 | -700.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 21.13 | 67.83 | -2.20 | 4.39 | 0.4691 | -587.0 | -481.5 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 20.96 | 67.80 | -2.23 | 4.48 | 0.4666 | -761.0 | -672.5 | |
| 0.00 | 1.46 | 0.00 | 0.83 | 22.44 | 66.95 | -3.08 | 5.84 | 0.4905 | -713.0 | -537.6 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 19.45 | 65.12 | -4.91 | 10.40 | 0.4487 | -901.0 | -681.6 | |
| 1.28 | 1.80 | 0.71 | 0.99 | 18.29 | 63.87 | -6.16 | 13.60 | 0.4348 | 630.3 | 744.7 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 21.67 | 63.61 | -6.42 | 12.38 | 0.4868 | 777.0 | 560.5 | |
| 0.00 | 3.00 | 0.00 | 1.68 | 20.31 | 62.65 | -7.38 | 14.91 | 0.4701 | 736.0 | 711.3 | |
| 0.00 | 3.77 | 0.00 | 2.11 | 20.05 | 62.47 | -7.56 | 15.41 | 0.4669 | 1027.0 | 800.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 20.38 | 62.36 | -7.67 | 15.42 | 0.4723 | 808.0 | 703.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
